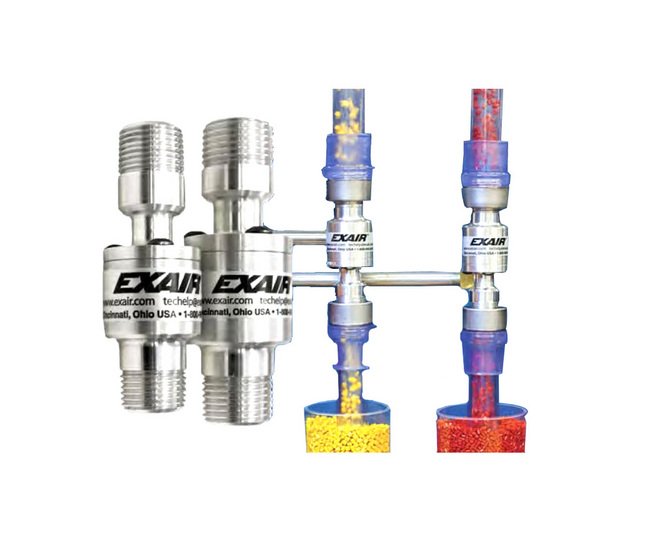

Stainless Steel Threaded Line Vac Conveyor - 1-1/2 NPT
Stainless Steel Threaded Line Vac Conveyor - 1-1/2 NPT
SKU:THR-f891ad
Efficiently convey bulk materials with the Stainless Steel Threaded Line Vac Conveyor - perfect for institutional use.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Stainless Steel Threaded Line Vac Conveyor - 1-1/2 NPT
$499.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Threaded Line Vac Conveyor - 1-1/2 NPT
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Threaded Line Vac Conveyor offers a rapid and cost-effective solution for conveying plastic pellets, scrap, textiles, bulk solids, and more. Ideal for institutional settings, this conveyor effortlessly converts ordinary pipes into a robust conveying system. With high performance similar to the standard Line Vac, its instant response and adjustable compressed air pressure ensure precise control over the conveying rate. Crafted from durable 316 stainless steel, this conveyor guarantees maintenance-free operation, making it a reliable choice for conveying large material volumes over extended distances.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Available from Stock | Compact | Fits Standard Pipe | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
33 SCFM | 934 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
0.86 in | 22 mm
Specifications Dimension J
1.73 in | 44 mm
Specifications Dimension K
0.25 in | 6 mm
Specifications Dimension L
1.44 in | 37 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.88 in | 48 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
1-1/2 NPT
Specifications Inside Diameter
1.25 in | 32 mm
Specifications Material
316 Stainless Steel
Specifications Outlet Thread Size
1-1/2 NPT
Specifications Outside Diameter
2.75 in | 70 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pipe Size
1-1/2 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-36.8 inWc | -9 kPa
