Stainless Steel Threaded Studs MS21259 for Military Applications

Stainless Steel Threaded Studs MS21259 for Military Applications

SKU:MIL-b4ae3e

High-quality Stainless Steel Threaded Studs designed for military applications, offering durability and precision performance.

Regular price $9.99
Regular price Sale price $9.99
Sale

Initiate Order

Stainless Steel Threaded Studs MS21259 for Military Applications

Stainless Steel Threaded Studs MS21259 for Military Applications

$9.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Threaded Studs MS21259 for Military Applications

Stainless Steel Threaded Studs MS21259 for Military Applications

$9.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

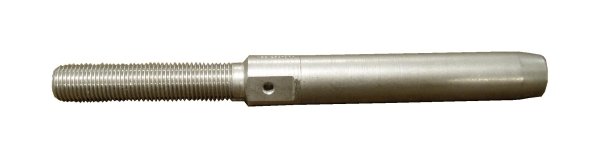

The Stainless Steel Threaded Studs MS21259, also known as AN 666 studs, are precision-engineered to meet the stringent requirements of military applications. Made of high-quality stainless steel, these studs come with the option to specify either RH Thread or LH Thread, providing versatility for different applications. With dimensions precisely crafted for optimal performance, these studs offer durability and reliability under demanding conditions. Suitable for wire rope diameters of 7/32 inches, these studs are designed to meet the highest standards of quality and precision.

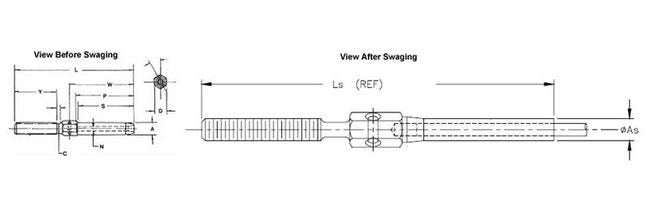

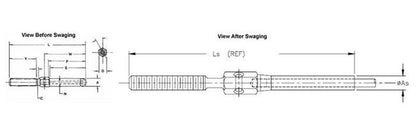

Product Specifications

Specifications As Diam
.375
Specifications A Diam
.427
Specifications C Diam In
.347
Specifications D In
.438
Specifications Lbs Per Piece
.12
Specifications Ls Ref
4.81
Specifications L 015 000 In
4.516
Specifications N Diam
.234
Specifications P In
2.261
Specifications R 005 000 Diameter In
.098
Specifications S 062 000 In
2.188
Specifications Thread Size B
3/8-24
Specifications To Fit Wire Rope Dia In
7/32
Specifications W 016 In
2.518
Specifications Y 063 000 In
1.625
CAGE
0T9L4
NAICS
332510
PSC
4030
