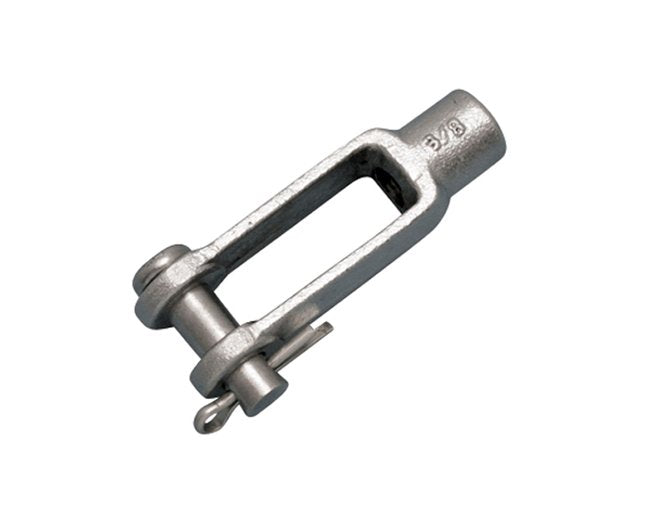

Stainless Steel Threaded Yoke End

Name: Stainless Steel Threaded Yoke End
Brand: Suncor Stainless, Inc.
SKU: STA-2636b9
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-2636b9

Grade 316 stainless steel yoke end with UNC threads. Ideal for marine and industrial turnbuckle applications. Working Load Limit of 3500 lb.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Threaded Yoke End, ranging in sizes from 3/16" to 3/4", boasts UNC threads for secure fastening. Crafted from grade 316 stainless steel, it offers exceptional corrosion resistance, perfect for demanding marine and industrial turnbuckle applications. With a Working Load Limit (WLL) of 3500 lb and exclusive fabrication by Suncor, this yoke end combines precision engineering with durability to ensure reliable performance in diverse settings.

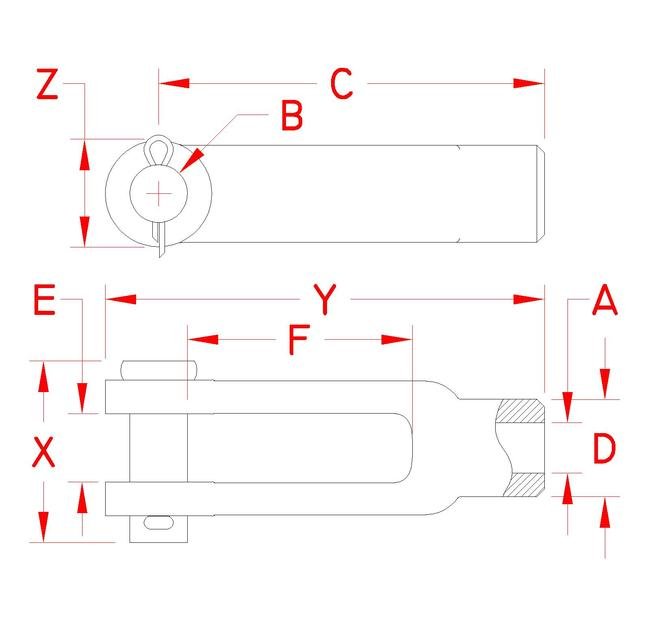

Product Specifications

Specifications Dimension A

5/8 in

Specifications Dimension B

0.63 in

Specifications Dimension C

4.94 in

Specifications Dimension D

1.06 in

Specifications Dimension E

0.70 in

Specifications Dimension F

3.37 in

Specifications Dimension X

1.92 in

Specifications Dimension Y

5.54 in

Specifications Dimension Z

1.15 in

Specifications Fabrication Type

Drop Forged | Precision Machined

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

1.14 lb

Specifications Working Load Limit Wll

3500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
