Stainless Steel Threaded Yoke End with Pins

Name: Stainless Steel Threaded Yoke End with Pins
Brand: Lexco Cable Manufacturing
SKU: WIR-dfc98c
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-dfc98c

High-strength Stainless Steel Yoke End for Wire Rope Hardware, WLL: 1200 lb

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

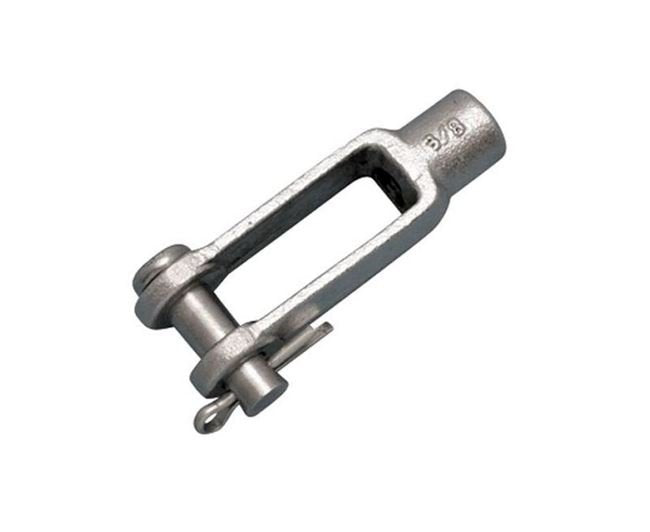

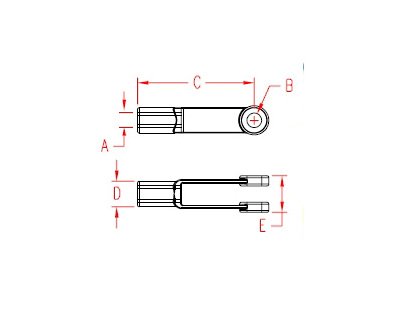

The Stainless Steel Threaded Yoke End provides exceptional durability and strength, with dimensions A: 3/8", B: 0.38", C: 2.55", D: 0.63", E: 0.88". This yoke end features a Working Load Limit of 1200 lb, making it ideal for heavy-duty applications. Crafted from high-quality stainless steel, it is designed for longevity and reliability. Suitable for various wire rope hardware and tools, this product is commonly known as clevises in the industry.

Product Specifications

Specifications Dim A

3/8 "

Specifications Dim B

0.38 "

Specifications Dim C

2.55 "

Specifications Dim D

0.63 "

Specifications Dim E

0.88 "

Specifications Material

Stainless Steel

Specifications Note

Sold with Pins. Also called clevises.UNC Right Hand Threaded

Specifications Wll

1200 lb

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Threaded Yoke End with Pins
