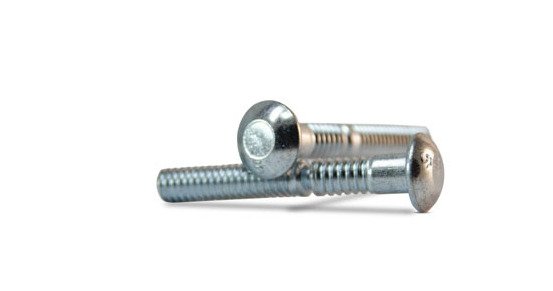

Stainless Steel Truss Head Lock Bolt, 3.121in
Stainless Steel Truss Head Lock Bolt, 3.121in
SKU:STA-7d6336
High-quality Stainless Steel Truss Head Lock Bolt, 3.121in, for secure fastening needs.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Stainless Steel Truss Head Lock Bolt, 3.121in
$12.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Truss Head Lock Bolt, 3.121in
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fastening solutions with our Stainless Steel Standard Truss Head Lock Bolt. Crafted from high-grade stainless steel, this bolt boasts a maximum mandrel length of 3.121 inches, ensuring secure and reliable connections. With a durable finish and excellent tensile strength, it meets the stringent requirements of institutional and government procurement standards.
Product Specifications
Dimensions Diameter
3/8 in
Dimensions Dimension A
0.380 to 0.385 in
Dimensions Maximum Grip Range
1.00 in
Dimensions Maximum Head Diameter
0.922 in
Dimensions Maximum Hole Diameter
0.391 in
Dimensions Maximum Hole Size
0.391 in
Dimensions Maximum Length
3.289 in
Dimensions Maximum Mandrel Length
3.121 in
Dimensions Minimum Grip Range
1.250 in
Dimensions Minimum Head Diameter
0.828 in
Dimensions Minimum Hole Diameter
0.381 in
Dimensions Minimum Length
3.148 in
Dimensions Minimum Mandrel Length
2.996 in
Dimensions Minimum Shear Strength
3606 lbf
Dimensions Minimum Tensile Strength
2767 lbf
Dimensions Nominal Drill Side
0.386 in
Dimensions Nominal Head Diameter
0.875 in
Dimensions Nominal Mandrel Length
3.059 in
Technical Specs Brands
Ornit
Technical Specs Finish
Natural
Technical Specs Head B
0.828 to 0.922 in
Technical Specs Head C
0.152 to 0.168 in
Technical Specs Head Shape
Truss Head
Technical Specs Material
Stainless Steel
