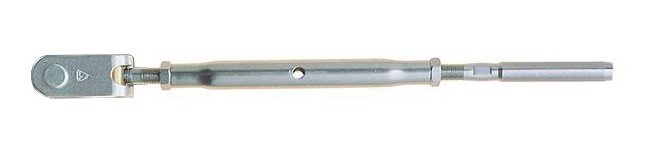

Stainless Steel Tubular Turnbuckles - Classic Jaw & Machine Swage
Stainless Steel Tubular Turnbuckles - Classic Jaw & Machine Swage
SKU:ARC-80110f
Durable Stainless Steel Turnbuckles for secure cable railing and marine rigging applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Tubular Turnbuckles - Classic Jaw & Machine Swage
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Tubular Turnbuckles - Classic Jaw & Machine Swage
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Tubular Turnbuckles with Classic Jaw & Machine Swage offer superior strength and durability for architectural cable railings and marine rigging applications. Featuring a Jaw with 'T' Toggle Construction and bronze toggle nuts to prevent galling under high load conditions, these turnbuckles provide secure connections. With an approximate breaking strength of 7000 lbs and a WLL of 2,800 lbs, they are reliable and safe for various uses. The 3/32" swage die ensures precise fittings, and the adjustable design with a 4-1/4" adjustment range caters to diverse requirements.
Product Specifications
Specifications Adjustment
4-1/4"
Specifications Approximate Breaking Strength
7000 lbs
Specifications Body Length
5-5/8
Specifications Pin Diameter
3/8"
Specifications Thread Size
3/8-24
Specifications Type
Jaw/Swage
Specifications Weight
12 oz
Specifications Wire Rope Dia
1/4"
Specifications Wll
2,800 lbs
CAGE
0T9L4
NAICS
332510
PSC
4030
