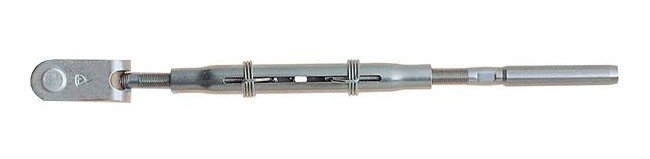

Stainless Steel Tubular Turnbuckles - Jaw & Machine Swage, Positive Locking - 3/16"

Name: Stainless Steel Tubular Turnbuckles - Jaw & Machine Swage, Positive Locking - 3/16"
Brand: Lexco Cable Manufacturing
SKU: ARC-69a42b
Price: 29.99 USD
Availability: OutOfStock

SKU:ARC-69a42b

Secure Stainless Steel Tubular Turnbuckles for architectural cable railings with positive locking system & high load capacity.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your architectural cable railings with our Stainless Steel Tubular Turnbuckles featuring Jaw & Machine Swage design for secure connections. The positive locking mechanism ensures reliable performance under high load conditions. With an approximate breaking strength of 7,000 lbs and a working load limit of 2,800 lbs, these turnbuckles offer durability and safety. Designed with precision, the fork ends can be crimped onto wire rope or aircraft cable, providing a seamless integration for marine rigging applications.

Product Specifications

Specifications Adjustment

3-1/4"

Specifications Approximate Breaking Strength

7,000

Specifications Body Length

5-5/8

Specifications Pin Diameter

3/8"

Specifications Thread Size

3/3-24

Specifications Type

Jaw/Swage

Specifications Weight

11 oz

Specifications Wire Rope Dia

3/16"

Specifications Wll

2,800

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Tubular Turnbuckles - Jaw & Machine Swage, Positive Locking - 3/16"
