Stainless Steel Turnbuckle Clip Locking for 3/32" Wire Rope MS21255C

Name: Stainless Steel Turnbuckle Clip Locking for 3/32" Wire Rope MS21255C
Brand: Lexco Cable Manufacturing
SKU: MIL-7f8a52
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-7f8a52

Premium stainless steel turnbuckle clip for 3/32" wire ropes, NAS 647 compliant, ideal for military use

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

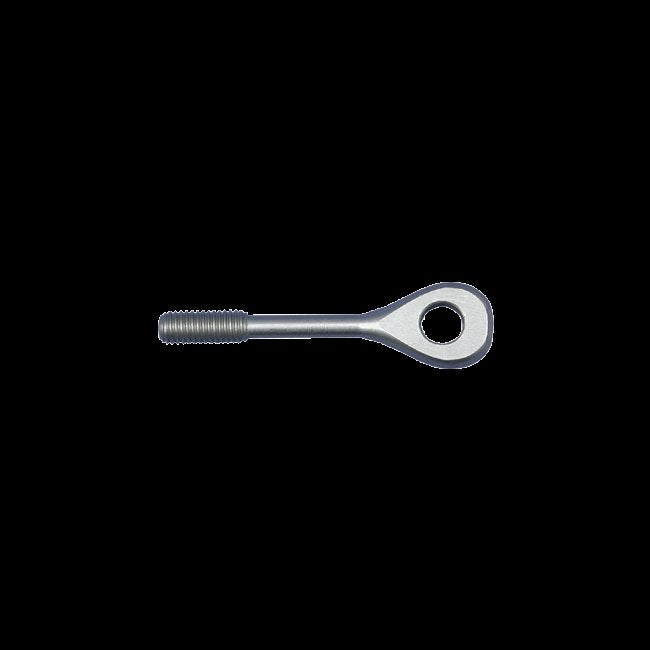

The Stainless Steel Turnbuckle Clip Locking MS21255C is a military-grade hardware designed to securely fasten 3/32" wire ropes with a high maximum breaking strength of 1,600 lbs. This premium product, compliant with NAS 647 standard and replacing AN 170, features precise dimensions and durable construction to withstand demanding applications. With UNF-3A 10-32 threads and meticulous measurements, this turnbuckle ensures a perfect fit and reliable performance in military and industrial settings.

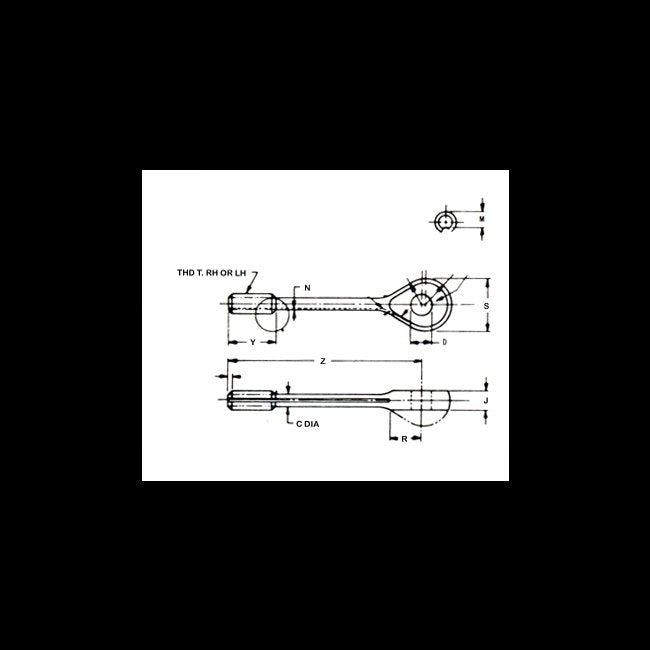

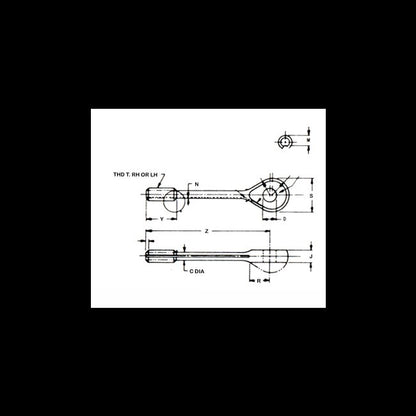

Product Specifications

Specifications A 010 000 Dia

.219

Specifications B Max

.0077

Specifications C 006 000 Diain

.133

Specifications D 031

.416

Specifications J 005

.188

Specifications Mbs Lbs

1,600

Specifications M Max

.1638

Specifications M Min

.1568

Specifications S Dia

.500

Specifications Thread T Unf 3a

10 - 32

Specifications Wire Rope Dia Ref

3/32

Specifications Y 047

.500

Specifications Z 031 015

2.500

CAGE

0T9L4

NAICS

332999

PSC

5340
