Stainless Steel UNC Thread Eye Bolt
Stainless Steel UNC Thread Eye Bolt
SKU:STA-99331b
Securely fasten with our durable Stainless Steel Eye Bolt, ideal for marine and industrial use. Compliant with ASME B30.26 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel UNC Thread Eye Bolt
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel UNC Thread Eye Bolt
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

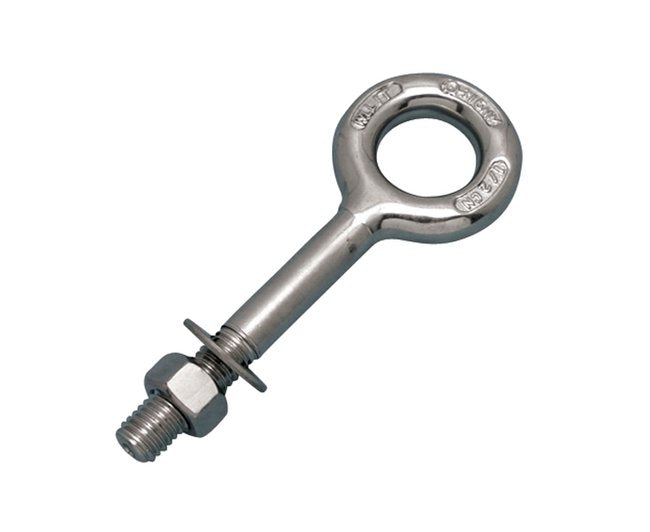

The Stainless Steel UNC Thread Eye Bolt, part of our premium Plain Eye Bolts collection, ensures secure fastening for industrial and marine applications. Made from 316-NM stainless steel, this eye bolt offers exceptional corrosion resistance and durability. Featuring a working load limit of 5,140 lb, precision machined fabrication, and ASME B30.26 compliance, it meets the highest standards for reliability and safety in heavy-duty projects.

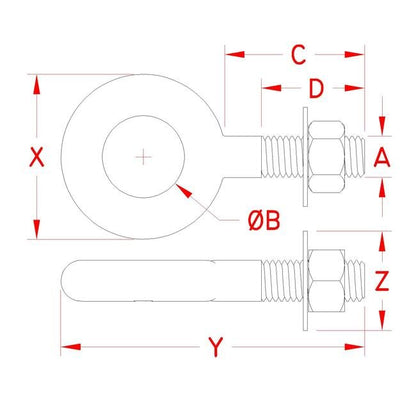

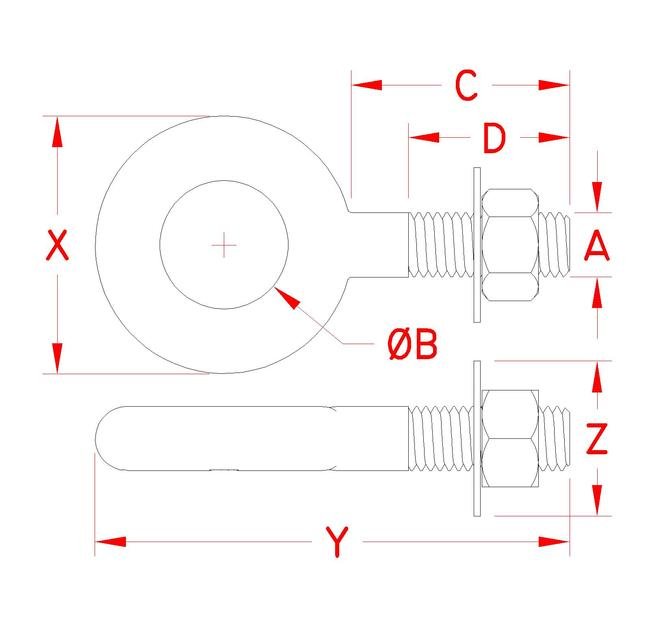

Product Specifications
Specifications Dimension A
3/4 in
Specifications Dimension B
1.50 in
Specifications Dimension C
2.00 in
Specifications Dimension D
1.75 in
Specifications Dimension X
2.90 in
Specifications Dimension Y
4.98 in
Specifications Dimension Z
1.44 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
1.13 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
