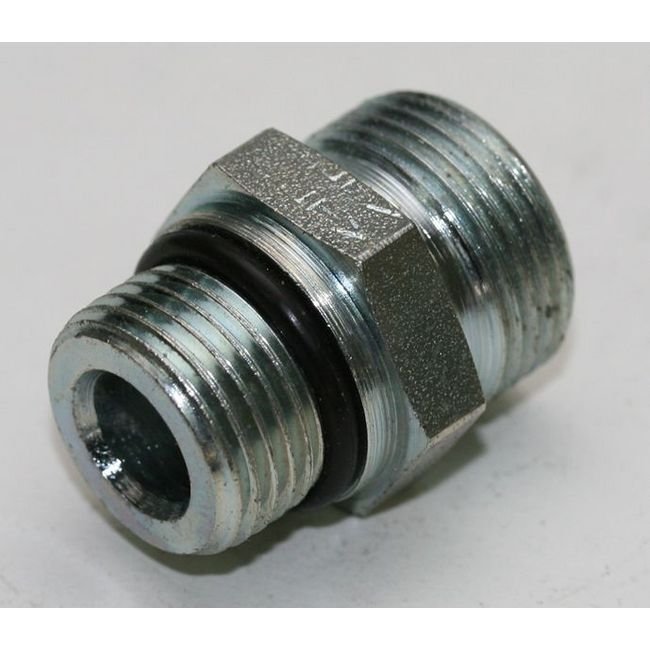

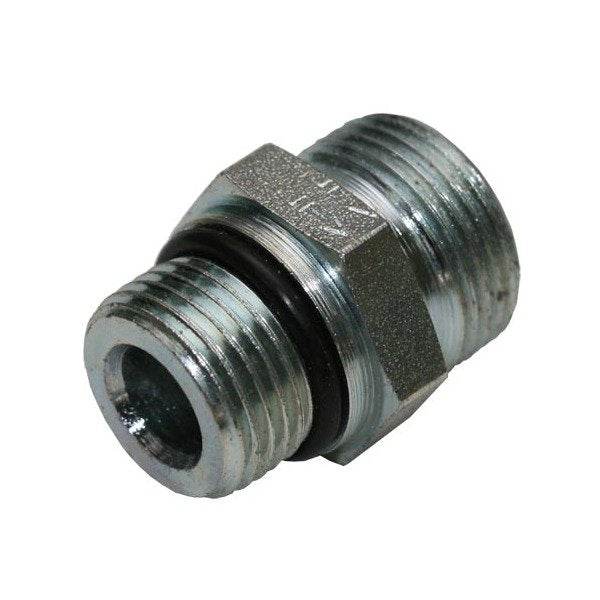

Stainless Steel UNF/UN-2A Male Stud Coupling with O-Ring Thread - Body Only

Name: Stainless Steel UNF/UN-2A Male Stud Coupling with O-Ring Thread - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-ee6bc7
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-ee6bc7

Stainless steel male stud coupling with UNF/UN-2A O-ring thread, DIN 2353 compliant for secure and reliable connections.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

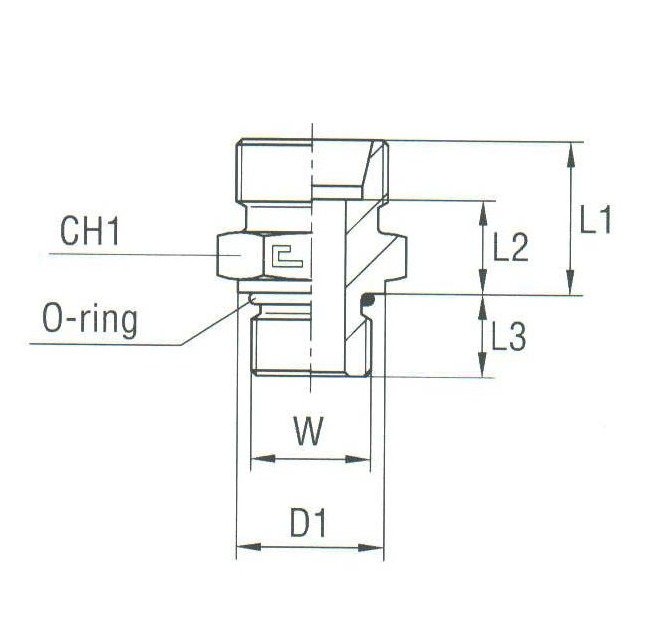

The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A is a durable and reliable fitting designed for light-duty applications. With a tube diameter of 12.0mm and a nominal operating pressure of 315 bar, this coupling ensures secure connections in various hydraulic systems. Compliant with DIN 2353 standards, it features precise dimensions including L1: 19.9mm, L2: 12.9mm, L3: 11.1mm, CH1: 22mm, and D1: 21.8mm, making it an ideal choice for industrial use.

Product Specifications

Specifications Ch1

22 mm

Specifications D1

21.8 mm

Specifications L1

19.9 mm

Specifications L2

12.9 mm

Specifications L3

11.1 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Specifications W Thread Size

3/4-16
