Stainless Steel UNF/UNC Threaded Shaft Collar

Name: Stainless Steel UNF/UNC Threaded Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-0b78fc
Price: 29.99 USD
Availability: OutOfStock

SKU:ROU-0b78fc

Precision-engineered Stainless Steel UNF/UNC Threaded Shaft Collar for superior clamping on threaded shafts. RoHS2 and REACH compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

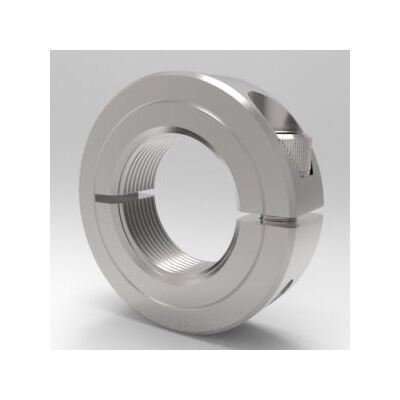

The Stainless Steel UNF/UNC Threaded Shaft Collar is designed for standard UNF/UNC threaded shafts, offering exceptional clamping power and precision. This one-piece split clamp-type collar ensures superior holding strength over traditional set-screw collars. Available in High Strength and Low Profile styles, it is easy to adjust and non-marring. Precision machined from high-grade 303 alloy stainless steel, this collar is RoHS2 and REACH compliant. Stocked in 7/8-9 threaded bore size, with an outside diameter of 1.625 inches and a width of 0.500 inches.

Product Specifications

Dimensional Attributes Outside Diameter

1.625 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28

Dimensional Attributes Threaded Bore Size

7/8-9

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.2 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

7S014C

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786012020
