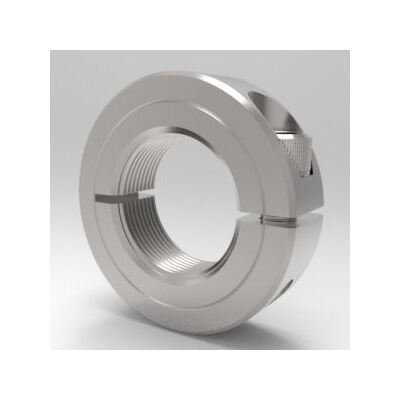

Stainless Steel UNF/UNC Threaded Shaft Collar

Name: Stainless Steel UNF/UNC Threaded Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: THR-9d44c7
Price: 34.68 USD
Availability: OutOfStock

SKU:THR-9d44c7

Precision machined Stainless Steel UNF/UNC Threaded Shaft Collar for superior holding power and easy adjustment on standard threaded shafts.

$34.68

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel UNF/UNC Threaded Shaft Collar is designed to fit standard UNF/UNC threaded shafts with superior holding power over traditional set-screw collars. Available in High Strength and Low Profile styles, these precision machined collars are non-marring, easy to adjust, and offer high clamping power. Made of high-grade 303 stainless steel, they come in a Low Profile design with a 1-14 threaded bore size, 1.750 in outside diameter, and 0.500 in width. Perfect for industrial applications requiring reliability and durability.

Product Specifications

Dimensional Attributes Outside Diameter

1.750 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28

Dimensional Attributes Threaded Bore Size

1-14

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.21 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications List Price

34.68 USD

Specifications Material

Stainless Steel

Specifications Part Number

7S100F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786012051
