Stainless Steel UNF/UNC Threaded Shaft Collar - High Strength, 2 1/4-12 Threaded Bore

Name: Stainless Steel UNF/UNC Threaded Shaft Collar - High Strength, 2 1/4-12 Threaded Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-ff2b1b
Price: 124.66 USD
Availability: OutOfStock

SKU:ROU-ff2b1b

Precision machined stainless steel shaft collar with high clamping power for UNF/UNC threaded shafts. RoHS2 and REACH compliant.

$124.66

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

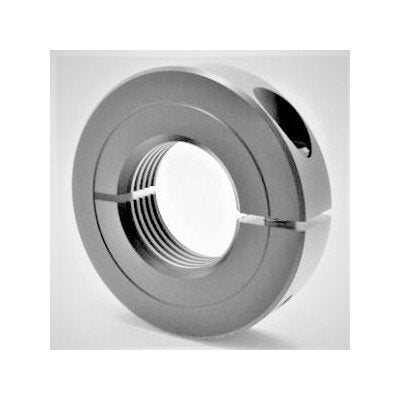

The Stainless Steel UNF/UNC Threaded Shaft Collar, part of the Signature series, offers superior holding power over set-screw collars. Made from high-strength 303 alloy, this one-piece split clamp-type collar is precision machined to fit standard UNF (fine thread) or UNC (coarse thread) shafts. With a non-marring design, easy adjustability, and high clamping power, it ensures secure shaft locking. Featuring an Outside Diameter of 3.500 inches and a Width of 0.625 inches, it includes recessed screws and is RoHS2 and REACH compliant. Made in the USA.

Product Specifications

Dimensional Attributes Outside Diameter

3.500 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

5/16-24

Dimensional Attributes Threaded Bore Size

2 1/4-12

Dimensional Attributes Width

0.625 in

Specifications Alloy

303

Specifications Approximate Weight

0.95 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications List Price

124.66 USD

Specifications Material

Stainless Steel

Specifications Part Number

3S204

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786011542

Stainless Steel UNF/UNC Threaded Shaft Collar - High Strength, 2 1/4-12 Threaded Bore
