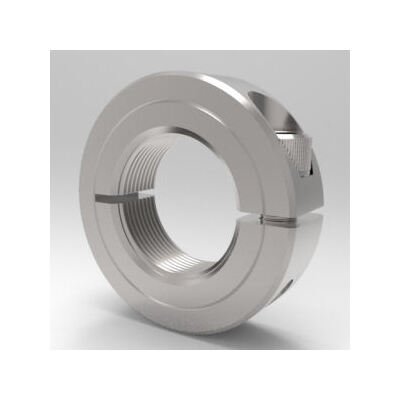

Stainless Steel UNF/UNC Threaded Shaft Collar, Low Profile, 5/8-18 Thread Size

Name: Stainless Steel UNF/UNC Threaded Shaft Collar, Low Profile, 5/8-18 Thread Size
Brand: Stafford Manufacturing Corp.
SKU: ROU-8cf72f
Price: 23.08 USD
Availability: OutOfStock

SKU:ROU-8cf72f

Precision-machined Stainless Steel UNF/UNC Split Clamp Shaft Collar for high holding power and adjustability on 5/8-18 threaded shafts.

$23.08

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel UNF/UNC Threaded Shaft Collar is a precision-machined, one-piece split clamp-type collar designed for standard threaded shafts. Offering superior holding power over set-screw collars, this collar is easy to adjust, non-marring, and ensures high clamping force. Made of high-strength Stainless Steel Alloy 303 and featuring a low-profile design, it fits 5/8-18 threaded bores with an outside diameter of 1.313 inches and a width of 0.438 inches. RoHS2 and REACH compliant, this collar is ideal for applications requiring durability and precise thread fit.

Product Specifications

Dimensional Attributes Outside Diameter

1.313 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

10-32

Dimensional Attributes Threaded Bore Size

5/8-18

Dimensional Attributes Width

0.438 in

Specifications Alloy

303

Specifications Approximate Weight

0.12 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications List Price

23.08 USD

Specifications Material

Stainless Steel

Specifications Part Number

7S010F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786011993

Stainless Steel UNF/UNC Threaded Shaft Collar, Low Profile, 5/8-18 Thread Size
