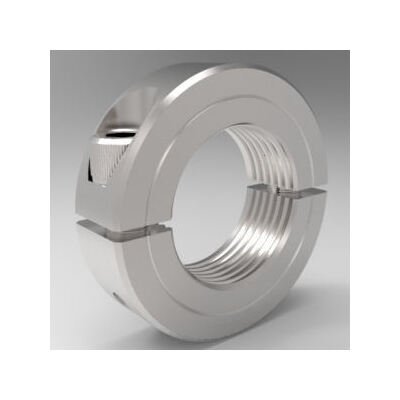

Stainless Steel UNF/UNC Threaded Shaft Collar - Low Profile Split Clamp-Type

Name: Stainless Steel UNF/UNC Threaded Shaft Collar - Low Profile Split Clamp-Type
Brand: Stafford Manufacturing Corp.
SKU: THR-b1eb46
Price: 24.99 USD
Availability: OutOfStock

SKU:THR-b1eb46

Precision machined Stainless Steel Split Clamp Shaft Collar for UNF/UNC threaded shafts, available in Low Profile style.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel UNF/UNC Two-Piece Split Clamp-Type Shaft Collar is precision machined for superior holding power over set-screw collars. Ideal for standard UNF/UNC threaded shafts, offering versatility with complete disassembly and adjustment anywhere on the shaft. Available in High Strength and Low Profile styles, the Low Profile variant features a non-marring design with the clamp screw protruding slightly beyond the outside diameter (OD). With a threaded bore size of 1/2-20 and constructed from 303 Stainless Steel, this collar provides durability and ease of adjustment for various applications.

Product Specifications

Dimensional Attributes Outside Diameter

1.125 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

8-32 x 1/2

Dimensional Attributes Threaded Bore Size

1/2-20

Dimensional Attributes Width

0.406 in

Specifications Alloy

303

Specifications Approximate Weight

0.08 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

8S008F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786012952

Stainless Steel UNF/UNC Threaded Shaft Collar - Low Profile Split Clamp-Type
