Stainless Steel UNF/UNC Two-Piece Clamp-Type Shaft Collars

Name: Stainless Steel UNF/UNC Two-Piece Clamp-Type Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: THR-a7c14c
Price: 29.99 USD
Availability: OutOfStock

SKU:THR-a7c14c

Precision-machined Stainless Steel 2-Piece Shaft Collars for UNF/UNC threaded shafts, offering superior holding power and adjustable placement.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

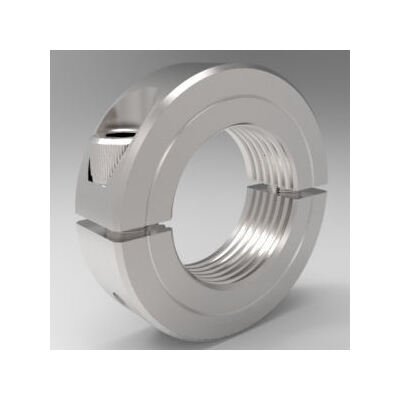

Ideal for standard UNF/UNC threaded shafts, these precision-machined Stainless Steel Shaft Collars provide superior holding power without marring the surface. Featuring a two-piece design, offering high clamping power, and available in both High Strength and Low Profile styles, these collars are easy to adjust and can be placed anywhere on the shaft. The Low Profile variant ensures a sleek finish with its clamp screw not protruding beyond the outside diameter. Suitable for a range of applications, these shaft collars are a reliable choice for demanding environments.

Product Specifications

Dimensional Attributes Outside Diameter

1.125 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

8-32 x 1/2

Dimensional Attributes Threaded Bore Size

1/2-13

Dimensional Attributes Width

0.406 in

Specifications Alloy

303

Specifications Approximate Weight

0.08 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

8S008C

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786012945
