Stainless Steel Unthreaded Yoke End

Stainless Steel Unthreaded Yoke End

STA-85aea2

Durable Stainless Steel Yoke End for marine & industrial use, WLL 500 lb, grade 316 stainless steel.

$24.99
$24.99
Sale

Initiate Order

Stainless Steel Unthreaded Yoke End

Stainless Steel Unthreaded Yoke End

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Unthreaded Yoke End

Stainless Steel Unthreaded Yoke End

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

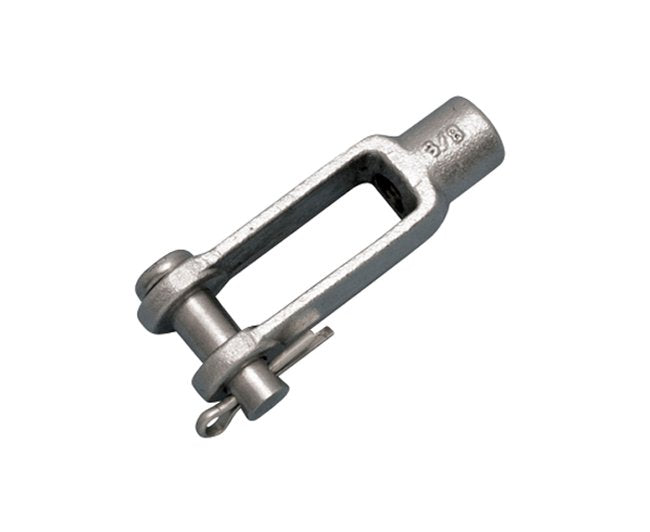

The Stainless Steel Unthreaded Yoke End, available in sizes from 3/16" to 3/4", is constructed from grade 316 stainless steel, providing exceptional corrosion resistance and durability. Primarily designed for marine and industrial turnbuckle applications, this yoke end boasts a Working Load Limit (WLL) of 500 lb, making it ideal for heavy-duty use. Manufactured using drop forged fabrication techniques, this Suncor exclusive product ensures reliability and longevity in demanding environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

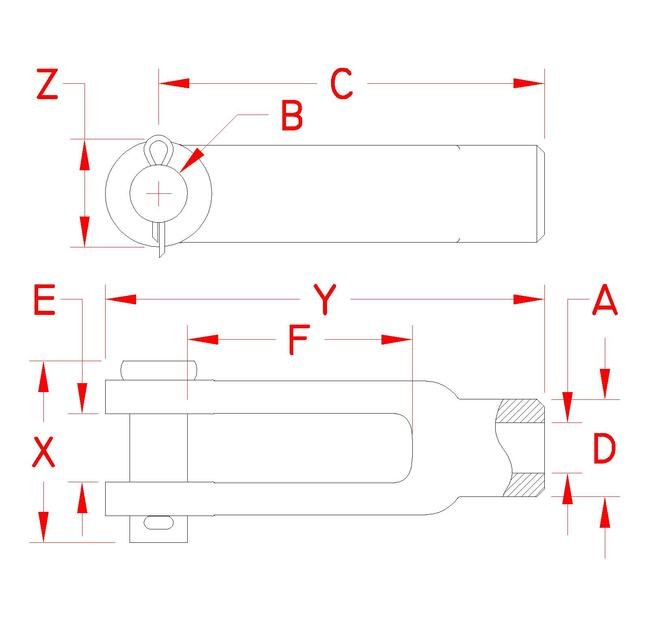

Product Specifications

Specifications Dimension A
0.21 in
Specifications Dimension B
0.25 in
Specifications Dimension C
2.00 in
Specifications Dimension D
0.44 in
Specifications Dimension E
0.29 in
Specifications Dimension F
1.08 in
Specifications Dimension X
0.92 in
Specifications Dimension Y
2.32 in
Specifications Dimension Z
0.53 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.1 lb
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
