Stainless Steel Unthreaded Yoke End 316

Stainless Steel Unthreaded Yoke End 316

SKU:STA-f43445

Durable Stainless Steel Yoke End 316 for marine & industrial applications, sizes from 3/16" to 3/4", WLL 300 lb, Suncor exclusive.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stainless Steel Unthreaded Yoke End 316

Stainless Steel Unthreaded Yoke End 316

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Unthreaded Yoke End 316

Stainless Steel Unthreaded Yoke End 316

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

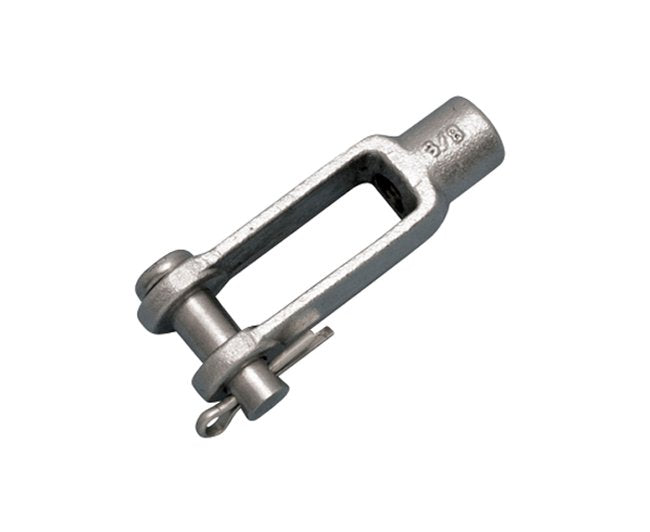

The Stainless Steel Unthreaded Yoke End 316 is a high-quality component designed for marine and industrial turnbuckle applications. Constructed from grade 316 stainless steel, this yoke end offers exceptional corrosion resistance and durability, ensuring reliable performance in harsh environments. Available in various sizes from 3/16" to 3/4", this yoke end features a working load limit of 300 lb, making it suitable for a wide range of rigging and tensioning tasks. With its drop-forged fabrication and Suncor exclusivity, this yoke end guarantees superior quality and performance.

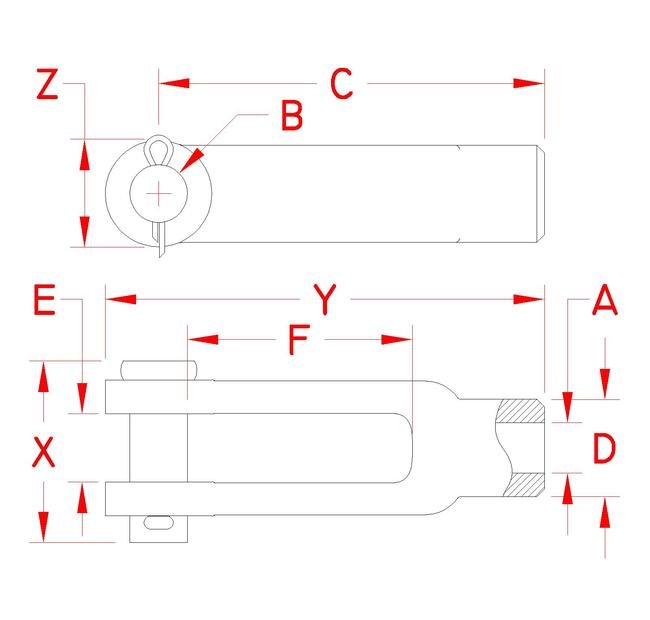

Product Specifications

Specifications Dimension A
0.16 in
Specifications Dimension B
0.19 in
Specifications Dimension C
1.56 in
Specifications Dimension D
0.31 in
Specifications Dimension E
0.19 in
Specifications Dimension F
0.89 in
Specifications Dimension X
0.68 in
Specifications Dimension Y
1.81 in
Specifications Dimension Z
0.39 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.04 lb
Specifications Working Load Limit Wll
300 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
