Stainless Steel Vacuum Flange Insert Check Valve - 40mm DN, 0.500 psi Cracking Pressure
Stainless Steel Vacuum Flange Insert Check Valve - 40mm DN, 0.500 psi Cracking Pressure
SKU:VIS-ae614c
Versatile Stainless Steel Check Valve - Compact Design, 0.500 psi Cracking Pressure - Ideal for Positive or Vacuum Pressure Systems
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Stainless Steel Vacuum Flange Insert Check Valve - 40mm DN, 0.500 psi Cracking Pressure
$79.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Vacuum Flange Insert Check Valve - 40mm DN, 0.500 psi Cracking Pressure
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

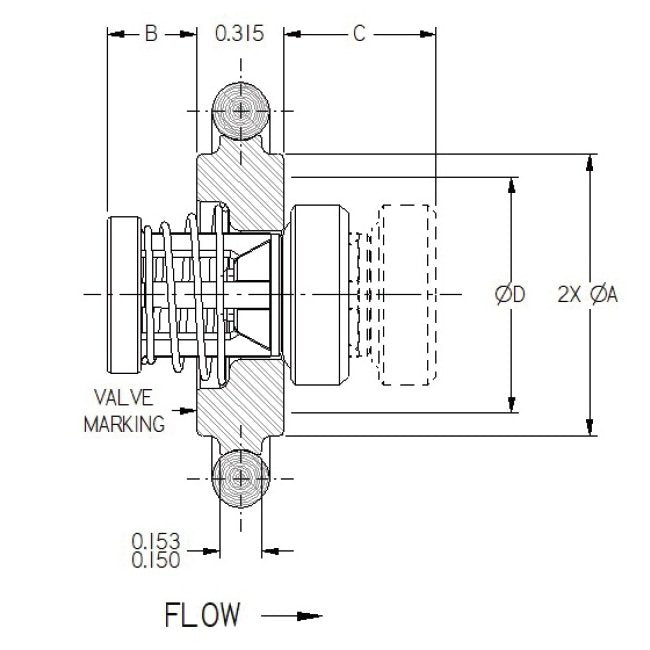

The Stainless Steel Vacuum Flange Insert Check Valve offers precise control for positive or vacuum pressure systems. Its compact design fits seamlessly between ISO/NW/KF/QF vacuum flanges, serving as a centering ring and a check valve. Crafted from 316 Stainless Steel, this valve guarantees durability. With a standard cracking pressure of 0.500 psi and various seat material options including Aflas®, EPDM, and more, it ensures versatile and reliable performance. Ideal for both consumer and institutional applications, this valve is designed for efficiency and longevity.
Product Specifications
Note
USP Class VI O-Rings can be supplied with certification.Made in USA.
Specifications 316 Stainless Steel Style Numbers
VIJSS
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS
Specifications Certifications
European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified
Specifications Diameter Nominal Dn Size
40 mm
Specifications Non Shock Pressure Rating
Full Vacuum-Atmospheric at 100 ºF
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Outside O Ring Size
326
Specifications Seat And Outer Seals Material
Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | USP Class VI Aflas® = UA = UA | USP Class VI Ethylene Propylene Diene Monomer (EPDM) = UE | USP Class VI Fluoro-Elastomer (FKM) = UV | USP Class VI Silicone = US
Specifications Size Code
J
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
VI
