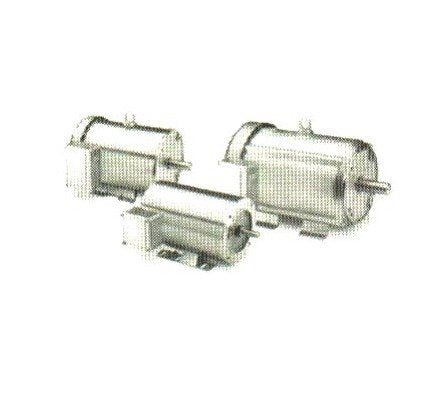

Stainless Steel Washdown Duty Electric Motor by Marathon
Stainless Steel Washdown Duty Electric Motor by Marathon
SKU:ELE-972142
Powerful stainless steel electric motor for pharmaceutical, food processing, and chemical industries. BISSC Certified.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Stainless Steel Washdown Duty Electric Motor by Marathon
$899.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Washdown Duty Electric Motor by Marathon
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Powerwash SXT-Plus Washdown Duty Electric Motor is designed for rigorous sanitation needs in pharmaceutical, food processing, and chemical industries. This motor, from Marathon Electric, boasts a sturdy all-stainless steel construction with a fully enclosed C-Face and Rigid Base for maximum durability. With features like MAX GUARD® Class F insulation, double-sealed ball bearings, and BISSC certification for the baking industry, this motor ensures top-notch performance in demanding environments with nitric acid and caustic lye exposure.
Product Specifications
Features 0
Suitable for use on VFD, 10:1 Variable torque, 6:1 Constant torque, 1.0 Service factor.MAX GUARD® Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals.Hydrophic breather in OP endshield and conduit box equalize air pressure.Nameplate information laser etched on frame.BISSC Certified for baking industry.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
48 lbs
Specifications Category
Washdown Duty
Specifications Dim C
13.54
Specifications Frame
56HC
Specifications Full Load Ampere Fla
1.5 amps | 2.9-2.9 amps
Specifications Horsepower
1
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T17V5349
Specifications Motor Type
Powerwash⢠SXT-Plus Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
82.0
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
