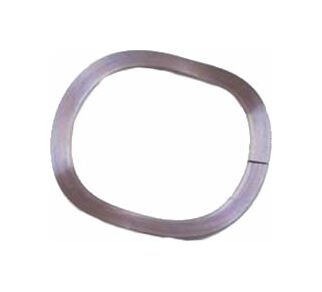

Stainless Steel Wave Washer with Overlap, 17-7 PH
Stainless Steel Wave Washer with Overlap, 17-7 PH
SKU:SPR-64db0d
Premium Stainless Steel Wave Washer with Overlap for efficient fastening and precise compression. Corrosion-resistant & space-saving design.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Stainless Steel Wave Washer with Overlap, 17-7 PH
$12.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Wave Washer with Overlap, 17-7 PH
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Wave Washer with Overlap is crafted from high-quality 17-7 PH stainless steel, meeting stringent standards like AMS-5529 and SUS631. It features a unique design with 3 waves allowing up to 50% reduction in spring height. Ideal for fastening, pushbutton, slip clutch applications, it offers exceptional corrosion resistance and precise dimensions for tight axial and radial installations. Experience compression with no galling, ensuring long-lasting performance in diverse industrial settings.
Product Specifications
Specifications Application Uses
Fastening, Pushbutton, Slip Clutch, etc.
Specifications Country Of Origin
-
Specifications Depth
0.095 Inch
Specifications Featuresadvantagesbenefits
Enables the spring height to be reduced by as much as 50%, fits in tighter axial and radial locations, slides across itself allowing compression with no galling of the bore in which it is installed/ Corrosion resistance
Specifications Free Height Approx In
0.095 Inch
Specifications Height
0.625 Inch
Specifications Loaded Height In
0.050 Inch
Specifications Material
Stainless Steel, 17-7 PH, C/CH-900, AMS-5529 or SUS631
Specifications Maximum Od In
0.625 Inch
Specifications Minimum Id In
0.480 Inch
Specifications Of Waves
3
Specifications Thickness In
0.010 Inch
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.000867 Pound
Specifications Width
0.095 Inch
