Stainless Steel Wide D Shackle with No Snag Pin, Grade 316
Stainless Steel Wide D Shackle with No Snag Pin, Grade 316
SKU:STA-feecd6
Grade 316 Stainless Steel Wide D Shackle with Flush No-Snag Pin, Ideal for Marine & Industrial Applications
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Wide D Shackle with No Snag Pin, Grade 316
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Wide D Shackle with No Snag Pin, Grade 316
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

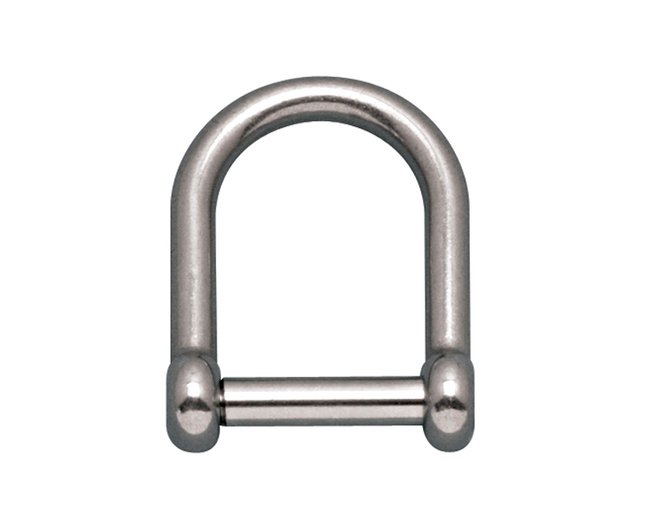

The Stainless Steel Wide D Shackle with No Snag Pin in grade 316 stainless steel offers superior corrosion resistance and durability. This precision-cast shackle features a flush no-snag pin design, available in sizes from 1/4" to 1/2". With a working load limit of 1000 lb, it is perfect for marine and industrial use, meeting stringent quality standards for reliability and performance.
Product Specifications

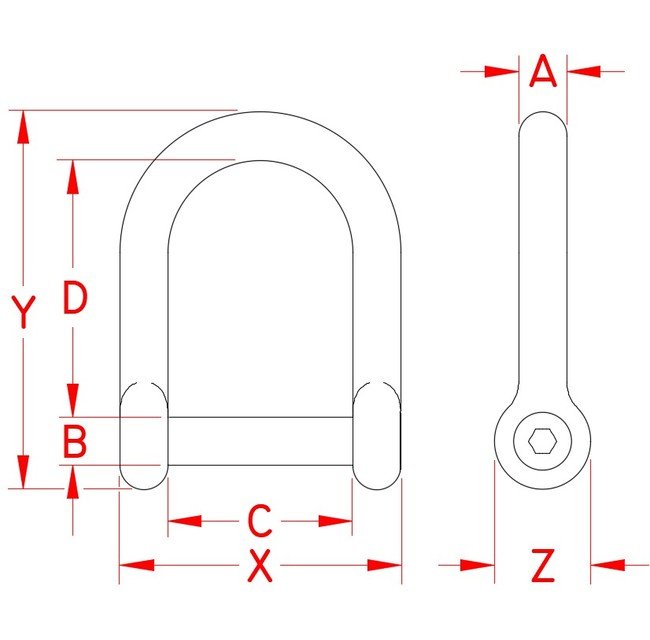

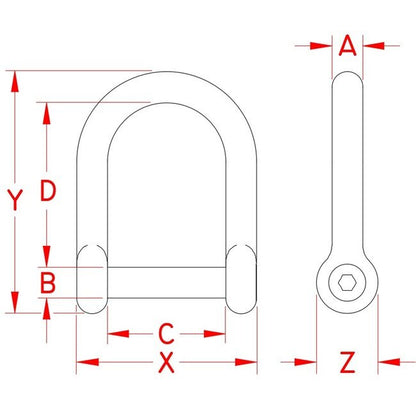

Specifications Dimension A
5/16 in
Specifications Dimension B
0.32 in
Specifications Dimension C
1.11 in
Specifications Dimension D
1.22 in
Specifications Dimension X
1.73 in
Specifications Dimension Y
2.02 in
Specifications Dimension Z
0.60 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.12 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
