Stainless Steel Wire Rope Plain Balls NAS494-7, BACT14B-7

Name: Stainless Steel Wire Rope Plain Balls NAS494-7, BACT14B-7
Brand: Lexco Cable Manufacturing
SKU: BOE-0a595b
Price: 49.99 USD
Availability: OutOfStock

SKU:BOE-0a595b

High-strength Stainless Steel Wire Rope Plain Balls meeting Boeing Specification NAS494-7 & BACT14B-7 for secure crimping on wire ropes.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance wire rope connections with precision using these Stainless Steel Plain Balls. Crafted to match Boeing Specification NAS494-7 and BACT14B-7, these balls offer reliable crimping solutions for various applications. With a maximum breaking strength of 2,800 lbs and precise dimensions, these balls ensure secure and durable wire rope fittings.

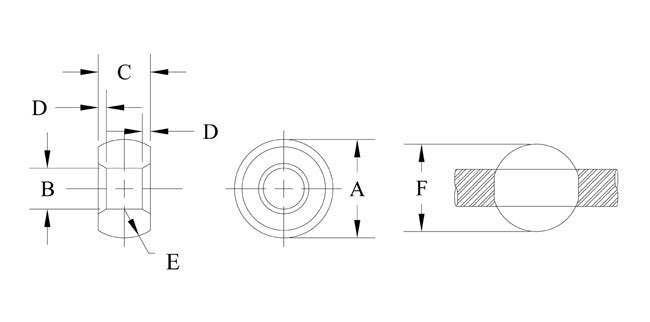

Product Specifications

Specifications A

.560 | .555

Specifications B

.238 | .233

Specifications C

.3025 | .2975

Specifications D

.041 | .031

Specifications E

.220 | .210

Specifications F Sphere Diameter

.505 | .500

Specifications Lbs Per Piece

0.0143

Specifications Mbs Lbs

2,800

Specifications Specification

BACT14B-7 | NAS494-7

Specifications To Fit Wire Rope Dia In

7/32

CAGE

0T9L4

NAICS

332510

PSC

4030
