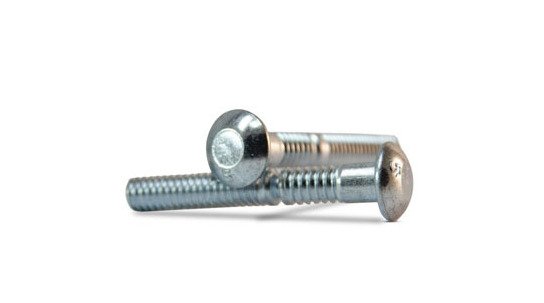

Standard Aluminum Brazier Head Lock Bolt, 1/4 in
Standard Aluminum Brazier Head Lock Bolt, 1/4 in
SKU:STA-2dc014
High-quality Aluminum Brazier Head Lock Bolt with 1.770in mandrel length, perfect for secure fastening. Compliant with Federal/DoD standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Standard Aluminum Brazier Head Lock Bolt, 1/4 in
$14.99
Quantity: 1
Claim Your Seller Account
Standard Aluminum Brazier Head Lock Bolt, 1/4 in
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Standard Aluminum Brazier Head Lock Bolt is designed for maximum security and durability. Crafted from high-quality Aluminum (2024) with a Zinc finish, it features a precise mandrel length of 1.770in, ensuring reliable fastening in various applications. With a range of robust specifications like minimum shear strength of 1701in and minimum tensile strength of 1610in, this bolt guarantees top-notch performance. Compliant with Federal/DoD procurement standards and FAR compliance factors, it is ideal for government and institutional requirements.
Product Specifications
Dimensions Diameter
1/4 in
Dimensions Dimension A
0.254 to 0.259 in
Dimensions Maximum Grip Range
0.188 in
Dimensions Maximum Head Diameter
0.525 in
Dimensions Maximum Hole Diameter
0.266 in
Dimensions Maximum Hole Size
0.266 in
Dimensions Maximum Length
1.922 in
Dimensions Maximum Mandrel Length
1.770 in
Dimensions Minimum Grip Range
0.313 in
Dimensions Minimum Head Diameter
0.475 in
Dimensions Minimum Hole Diameter
0.256 in
Dimensions Minimum Length
1.781 in
Dimensions Minimum Mandrel Length
1.645 in
Dimensions Minimum Shear Strength
1701 in
Dimensions Minimum Tensile Strength
1610 in
Dimensions Nominal Drill Side
0.261 in
Dimensions Nominal Head Diameter
0.500 in
Dimensions Nominal Mandrel Length
1.708 in
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc
Technical Specs Head B
0.475 to 0.525 in
Technical Specs Head C
0.136 to 0.152 in
Technical Specs Head Shape
Braizier Head
Technical Specs Material
Aluminum (2024)
