Standard Brass Companion Flange - 2 1/2 inches
Standard Brass Companion Flange - 2 1/2 inches
SKU:FIT-e65922
High-quality Standard Brass Companion Flange - 2 1/2 inches for secure and precise fittings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Standard Brass Companion Flange - 2 1/2 inches
$29.99
Quantity: 1
Claim Your Seller Account
Standard Brass Companion Flange - 2 1/2 inches
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Standard Brass Companion Flange is designed for durability and precision. With a size of 2 1/2 inches, O.D of Flange at 7 inches, and other dimensions meeting industry standards, this flange ensures a secure and tight fit. It boasts a height of 1 1/8 inches, 9/16 inch Flange Thickness, and 4 Bolt design, making it ideal for various applications. Engineered to withstand demanding environments, this brass flange guarantees reliable performance.

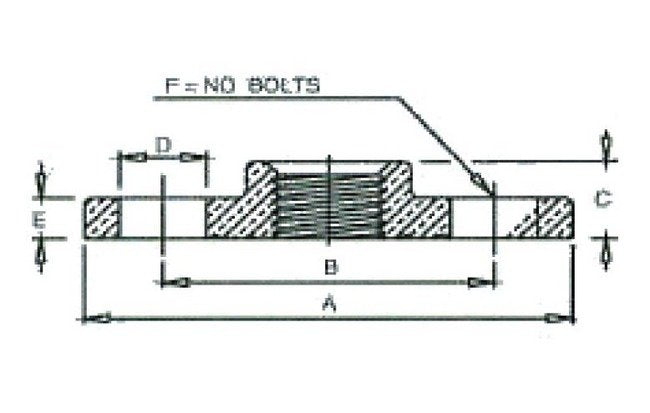

Product Specifications
Specifications Diameter Of Bolt Circle B
5 1/2
Specifications Diameter Of Bolt Hole D
3/4
Specifications Flange Thickness E
9/16
Specifications Height C
1 1/8
Specifications No Of Bolts F
4
Specifications Od Of Flange A
7
Specifications Size
2 1/2 inches
