Standard Chip Deflector - 3.250x1.500 in, 16GA CRS

Name: Standard Chip Deflector - 3.250x1.500 in, 16GA CRS
Brand: Bermar Associates, Inc.
SKU: STA-b9130b
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-b9130b

Ensure machine longevity with our precision-crafted Standard Chip Deflector made of 16GA CRS. Customizable sizes available.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

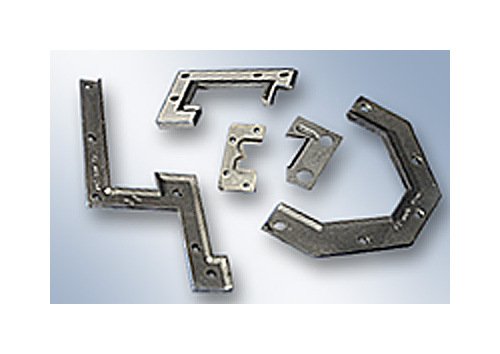

The Standard Chip Deflector by Bermar Associates, Inc. is precision-crafted from 16 gauge cold-rolled steel to protect machine ways and way wipers from metal chips in hot chip applications. Customizable in various sizes and hole patterns, this deflector adds strength and resilience. Easy to mount following specific instructions, it ensures enhanced performance and longevity, catering to the stringent demands of industrial environments.

Product Specifications

Mounting Instructions Mounting Instructions

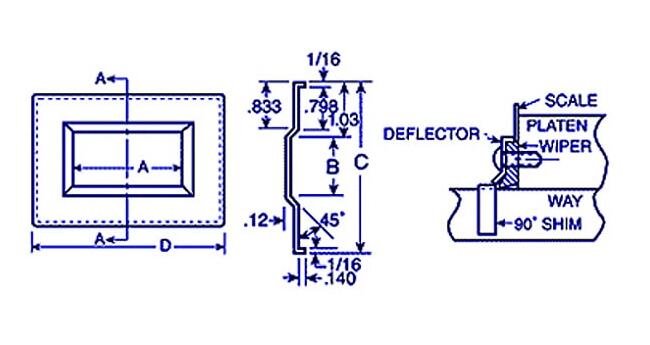

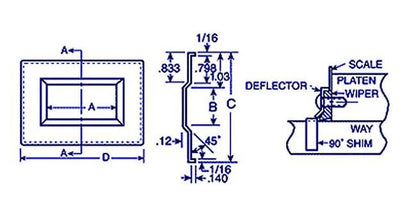

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

3.250 in

Specifications Dimension B

1.500 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
