Standard Chip Deflector Set - 4.875x2.375 in
Standard Chip Deflector Set - 4.875x2.375 in
SKU:STA-96d64f
Protect machine ways with precision – Standard Chip Deflector Set
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Standard Chip Deflector Set - 4.875x2.375 in
$49.99
Quantity: 1
Claim Your Seller Account
Standard Chip Deflector Set - 4.875x2.375 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

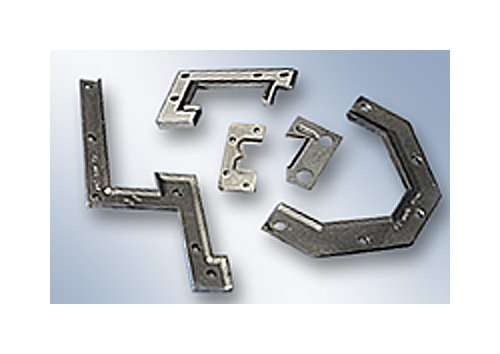

Bermar Associates, Inc. offers high-quality Standard Chip Deflectors made of 16 gauge cold-rolled steel, providing exceptional protection for machine ways and way wipers from metal chips. These deflectors are preformed to fit specific way wipers, ideal for hot chip applications, and can be customized to meet your size specifications. Easy to mount following precise instructions, these deflectors enhance equipment durability and efficiency, making them a reliable choice for industrial and institutional use.
Product Specifications

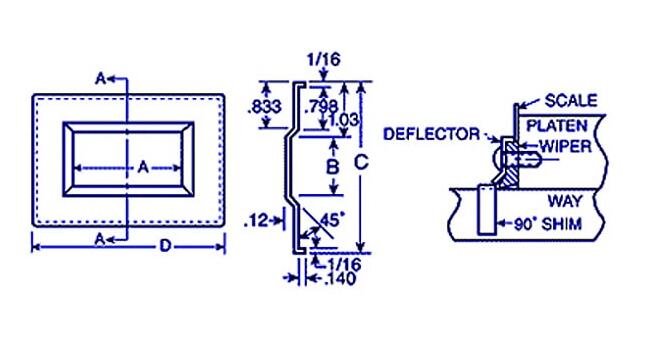

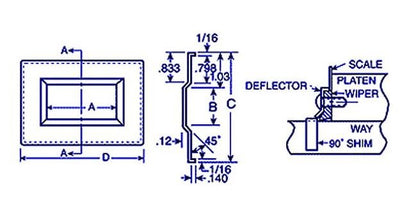

Mounting Instructions Mounting Instructions
Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90º shim under lip of deflector.Use 6" scale. Apply pressure 90º leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.
Specifications Dimension A
4.875 in
Specifications Dimension B
2.375 in
Specifications Materials
Cold Rolled Steel (CRS)
Specifications Material Thickness
16 gauge
