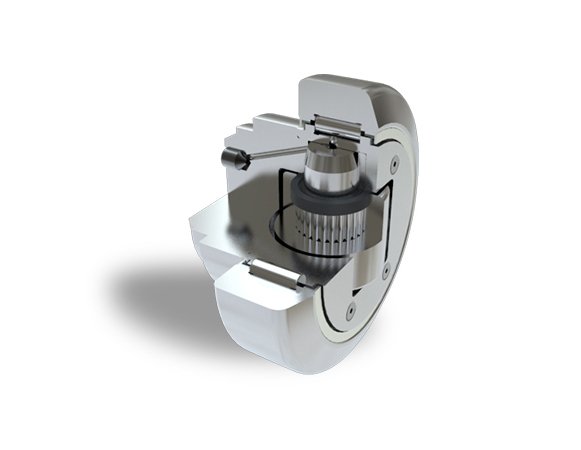

Standard Combined Roller Bearings
Standard Combined Roller Bearings
SKU:COM-c63846
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Standard Combined Roller Bearings
$49.99
Quantity: 1
Claim Your Seller Account
Standard Combined Roller Bearings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Basic Load Rating Basic Co Load Rating
32 kN
Basic Load Rating Basic C Load Rating
24 kN
Basic Load Rating Dynamic Ca Basic Load Rating
7 kN
Basic Load Rating Static Coa Basic Load Rating
7 kN

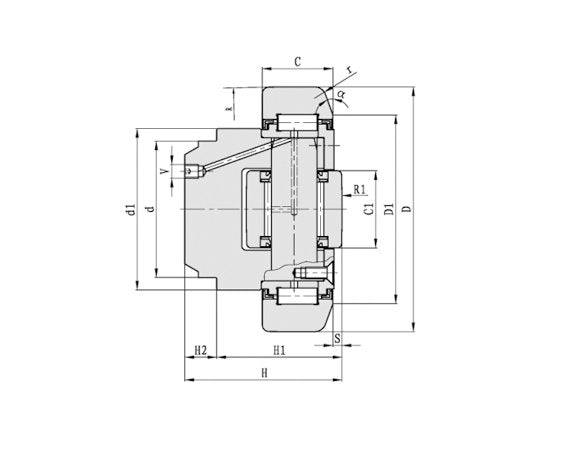

Dimensions Bore Diameter
30 mm
Dimensions Dimension C
17 mm
Dimensions Dimension C1
15 mm
Dimensions Dimension D1
40 mm
Dimensions Dimension H
33 mm
Dimensions Dimension H1
27 mm
Dimensions Dimension H2
6 mm
Dimensions Dimension R
500 mm
Dimensions Dimension R1
500 mm
Dimensions Dimension S
2 mm
Dimensions Outside Diameter
52.5 mm
Specifications Reference Code Germany
4.053
