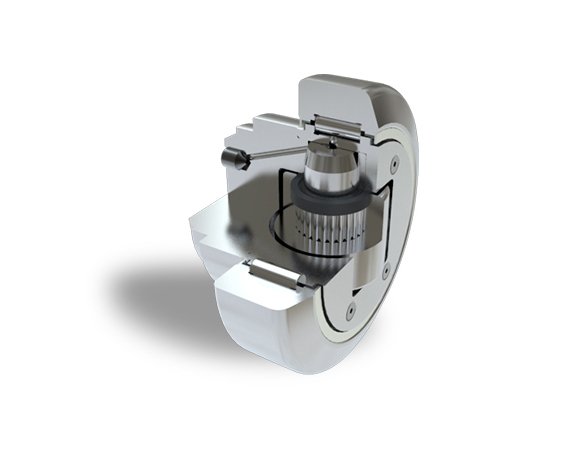

Standard Combined Roller Bearings
Standard Combined Roller Bearings
SKU:COM-53e463
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Standard Combined Roller Bearings
$49.99
Quantity: 1
Claim Your Seller Account
Standard Combined Roller Bearings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Basic Load Rating Basic Co Load Rating
56.8 kN
Basic Load Rating Basic C Load Rating
48 kN
Basic Load Rating Dynamic Ca Basic Load Rating
18 kN
Basic Load Rating Static Coa Basic Load Rating
18 kN

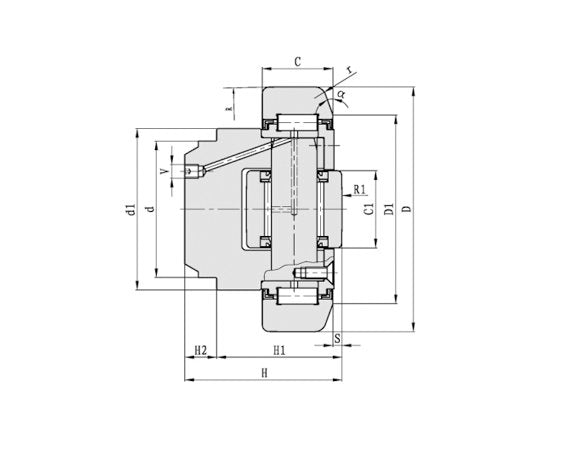

Dimensions Angle
20 º
Dimensions Bore Diameter
40 mm
Dimensions Dimension C
23 mm
Dimensions Dimension C1
26 mm
Dimensions Dimension D1
53 mm
Dimensions Dimension H
48 mm
Dimensions Dimension H1
36.5 mm
Dimensions Dimension H2
11.5 mm
Dimensions Dimension R
700 mm
Dimensions Dimension R1
700 mm
Dimensions Dimension S
3 mm
Dimensions Dimension V
M6X1 mm
Dimensions Optional Outer Diameter
78.1 mm | 81.8 mm
Dimensions Outside Diameter
61 mm
Specifications Reference Code Germany
4.056
Specifications Reference Code Italy A
4.0056-77.7
Specifications Reference Code Italy B
MR.003
