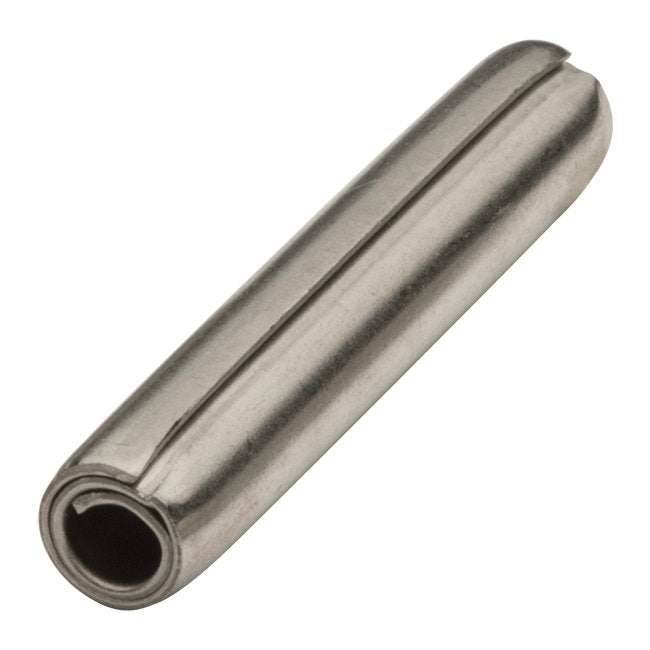

Standard Duty Coiled Spring Pin 2mm x 8mm Nickel Stainless Steel ISO 8750 ASME B18.8.3M
Standard Duty Coiled Spring Pin 2mm x 8mm Nickel Stainless Steel ISO 8750 ASME B18.8.3M
SKU:COI-460895
High-quality 2mm x 8mm Standard Duty Coiled Spring Pin in Nickel Stainless Steel. Conforms to ISO 8750 ASME B18.8.3M.
Regular price
$74.03
Regular price
Sale price
$74.03
Unit price
per
Initiate Order
Standard Duty Coiled Spring Pin 2mm x 8mm Nickel Stainless Steel ISO 8750 ASME B18.8.3M
$74.03
Quantity: 1
Claim Your Seller Account
Standard Duty Coiled Spring Pin 2mm x 8mm Nickel Stainless Steel ISO 8750 ASME B18.8.3M
$74.03
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Standard Duty Coiled Spring Pin in 2mm x 8mm size, made of high-quality Nickel Stainless Steel (UNS S30200/S30400), offers optimal strength and flexibility for nonferrous, mild steel, and even hardened component assemblies. This pin features a plain finish, work-hardened heat treatment, and strict adherence to ISO 8750 and ASME B18.8.3M standards. With a minimum double shear strength of 1.90 kN, precise dimensions, and 2D/3D model access, it's a reliable choice for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Asme
B18.8.3M
Specifications Chamfer Diameter B Max
1.90 mm
Specifications Chamfer Length C Ref
0.70 mm
Specifications Diameter D Max
2.25 mm
Specifications Diameter D Min
2.13 mm
Specifications Duty
Standard
Specifications Finish
Plain
Specifications Heat Treatment
Work Hardened
Specifications Iso
8750
Specifications Length L
8 mm
Specifications Length Tolerance
±0.25
Specifications Material Grade
UNS S30200 / S30400 X10CrNi18-8 (1.4310)
Specifications Material Type
Nickel Stainless Steel
Specifications Minimum Double Shear Strength
1.90 kN
Specifications Nominal Dia
2 mm
Specifications Order Processing Note
Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.
Specifications Package Type
Box
Specifications Pin Straightness Tolerance Max
0.20
Specifications Pin Straightness Tolerance Min
0.18
Specifications Price Per Package Unit
74.03 USD | 98.67 CAD | 79.88 EUR | 46.01 GBP
Specifications Recommended Hole Size Max
2.10 mm
Specifications Recommended Hole Size Min
2.00 mm
Specifications Units Per Box
1000
Specifications Weight Per Piece
0.0001208 kg | 0.0002663 lb
