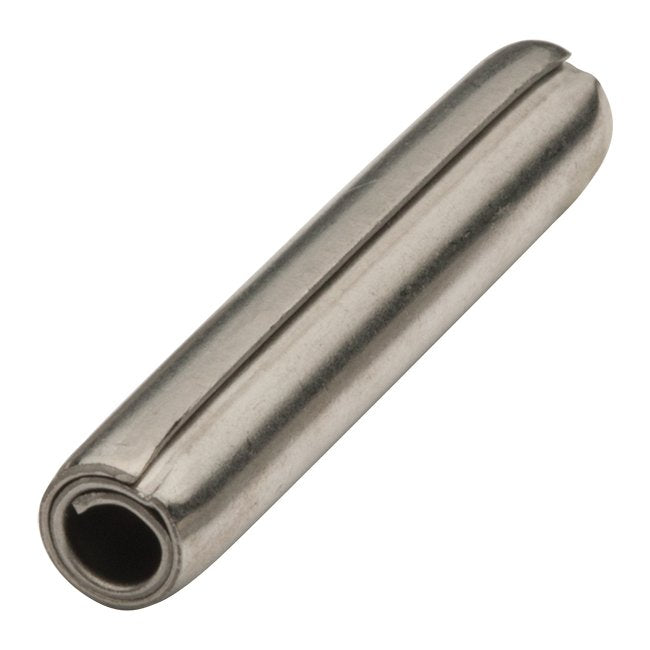

Standard Duty Coiled Spring Pin - 8mm x 60mm - Nickel Stainless Steel
Standard Duty Coiled Spring Pin - 8mm x 60mm - Nickel Stainless Steel
SKU:COI-a5aea5
High-quality 8mm x 60mm Standard Duty Coiled Spring Pin in Nickel Stainless Steel, ideal for shock absorption and vibration resistance.
Regular price
$296.34
Regular price
Sale price
$296.34
Unit price
per
Initiate Order
Standard Duty Coiled Spring Pin - 8mm x 60mm - Nickel Stainless Steel
$296.34
Quantity: 1
Claim Your Seller Account
Standard Duty Coiled Spring Pin - 8mm x 60mm - Nickel Stainless Steel
$296.34
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Standard Duty Coiled Spring Pin in 8mm x 60mm size is specially designed by SPIROL to offer a perfect blend of strength and flexibility, ideal for nonferrous, mild steel, and even hardened components. Conforming to ISO 8750 and ASME B18.8.3M standards, this Nickel Stainless Steel Coiled Pin provides superior shock absorption and vibration resistance. With a high carbon steel makeup and precise dimensions, it ensures optimal performance in various applications, maintaining reliability and durability.
Product Specifications
Specifications Asme
B18.8.3M
Specifications Chamfer Diameter B Max
7.80 mm
Specifications Chamfer Length C Ref
2.00 mm
Specifications Diameter D Max
8.63 mm
Specifications Diameter D Min
8.30 mm
Specifications Duty
Standard
Specifications Finish
Plain
Specifications Heat Treatment
Work Hardened
Specifications Iso
8750
Specifications Length L
60 mm
Specifications Length Tolerance
±0.75
Specifications Material Grade
UNS S30200 / S30400 X10CrNi18-8 (1.4310)
Specifications Material Type
Nickel Stainless Steel
Specifications Minimum Double Shear Strength
30 kN
Specifications Nominal Dia
8 mm
Specifications Order Processing Note
Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.
Specifications Package Type
Box
Specifications Pin Straightness Tolerance Max
0.48
Specifications Pin Straightness Tolerance Min
0.42
Specifications Price Per Package Unit
296.34 USD | 395.02 CAD | 277.75 EUR | 157.18 GBP
Specifications Recommended Hole Size Max
8.15 mm
Specifications Recommended Hole Size Min
8.00 mm
Specifications Units Per Box
250
Specifications Weight Per Piece
0.0146422 kg | 0.03228 lb
