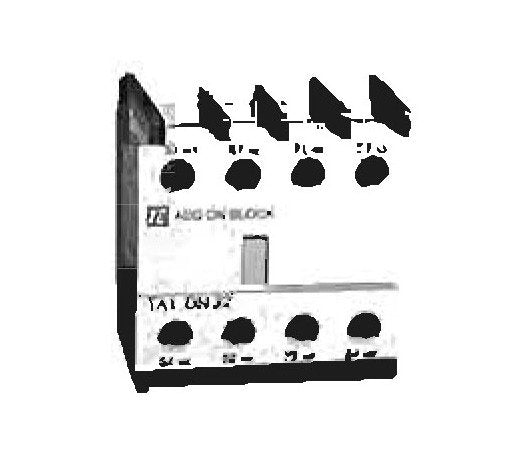

Standard Instantaneous Auxiliary Contact Block - 2 Normally Open/2 Normally Closed Contacts
Standard Instantaneous Auxiliary Contact Block - 2 Normally Open/2 Normally Closed Contacts
SKU:CON-ed11b9
Upgrade your contactors with our IEC-compliant Auxiliary Contact Block for reliable switching performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Standard Instantaneous Auxiliary Contact Block - 2 Normally Open/2 Normally Closed Contacts
$49.99
Quantity: 1
Claim Your Seller Account
Standard Instantaneous Auxiliary Contact Block - 2 Normally Open/2 Normally Closed Contacts
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your contactors with our Shamrock Controls Standard Instantaneous Auxiliary Contact Block featuring 2 Normally Open and 2 Normally Closed contacts. Compliant with IEC 60947-4-1, it offers insulation resistance of over 10 MΩ, withstands temperatures from -40 to 70°C, and boasts a mechanical life of 30 million cycles. Ideal for industrial applications requiring reliable switching capabilities.
Product Specifications
Specifications Contacts Normally Closed Nc
2
Specifications Contacts Normally Open No
2
Specifications Contact Type
Normally Closed | Normally Open
Specifications Frequency Of Operational Current
25 to 400 Hz
Specifications Insulation Resistance
> 10 MΩ
Specifications Mechanical Life
30 Million Cycles
Specifications Minimum Switching Current Capacity I Min
5 mA
Specifications Minimum Switching Voltage Capacity U Min
17 V
Specifications Number Of Contacts
4
Specifications Permissible Short Time Current Rating For At 100
140 A
Specifications Permissible Short Time Current Rating For At 1 Se
100 A
Specifications Permissible Short Time Current Rating For At 500
120 A
Specifications Rated Insulation Voltage Ui Conforming To Interna
600 V
Specifications Rated Thermal Current For Ambient Temperature 40
10 A
Specifications Snap On Mounting
To the front of TC1D09-D95, LC1F115A-800A, TP1D09-D80, TP1-DC09/12/25, TCA2DN/TCA3DN
Specifications Time Delay Ambient Air Temperature For Operation
-40 to 70 ºC
