Standard Ion Air Knife - 30 Inch Length
Standard Ion Air Knife - 30 Inch Length
SKU:STA-9afbe9
Eliminate static efficiently with the shockless Standard Ion Air Knife - 30:1 Air Amplification. UL Certified, RoHS Compliant.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Standard Ion Air Knife - 30 Inch Length
$599.99
Quantity: 1
Claim Your Seller Account
Standard Ion Air Knife - 30 Inch Length
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

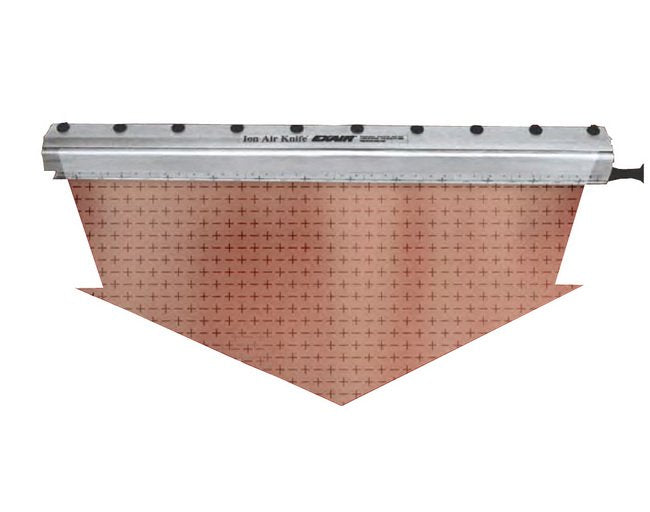

The Standard Ion Air Knife, with 30:1 air amplification, is an efficient solution for eliminating static electricity from plastics, webs, sheet stock, and other surfaces prone to tearing or jamming. This electrically powered ionizer features a shockless design with no moving parts, delivering fast static decay and strong blowoff force adjustable from a 'blast' to a 'breeze'. With up to 20 feet of reach, it offers compact, rugged construction, low maintenance, reduced air consumption, and variable force and flow. Certified to UL safety standards and RoHS compliant, it solves dust clinging, hazardous sparks, and other static-related issues.
Product Specifications
Specifications Advantages
30:1 Air Amplification | Compact, Rugged, Easy to Install | Effective up to 20 feet (6.1 m) | Low Maintenance | Low Noise Level | Reduced Air Consumption | Shockless, Non-Radioactive | Unlimited System Lengths | Variable Force and Flow
Specifications Applications
Bag Opening/Filling Operations | Cleaning Parts | Hard to Reach Places or Obstructed Surfaces | Molding Machines | Package Cleaning | Pre-paint Dust Removal | Printing Equipment | Product Moving at High Speeds | Sheeters and Trimmers | Shrink Wrappers | Surfaces with an Extremely High Charge | Web Cleaning
Specifications Certifications
Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards. Power supplies are Underwriters Laboratories (UL) Listed to U.S. and Canadian safety standards, and are European Conformity (CE) and Restriction Of Hazardous Substances (RoHs) Compliant.
Specifications Compressed Air
1/4 NPT inlets are provided on each end
Specifications Connector Type
1/4 NPT
Specifications Emitters Material
Stainless Steel
Specifications Included Accessories
Ionizing Bar Assembly | Standard Air Knife
Specifications Ionizing Bar Channel Material
Aluminum
Specifications Length
30 in | 762 mm
Specifications Maximum Ambient Temperature
165 ºF | 74 ºC
Specifications Maximum Distance
0 to 20 ft
Specifications Plastic Parts Grading
UL rated 94 HB
Specifications Power Supply
5 kVrms, 5 milliamperes (maximum) power supply.
Specifications Problems Solved With Static Eliminators
Dust clinging to product | Hazardous sparks or shocks | Materials tearing, jamming or curling | Product clinging to itself, rollers, machine beds or frames | Sheet feeding problems
Specifications Standard Air Knife Material
Aluminum
