Standard Pole Single Angle Magnetic Sine Plate
Standard Pole Single Angle Magnetic Sine Plate
SKU:STA-009b8d
Achieve precise angular setups effortlessly with the Standard Pole Single Angle Magnetic Sine Plate by MAGNETOOL. Durable construction, high holding power, and exceptional accuracy make it a must-have for precision work.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Standard Pole Single Angle Magnetic Sine Plate
$899.99
Quantity: 1
Claim Your Seller Account
Standard Pole Single Angle Magnetic Sine Plate
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

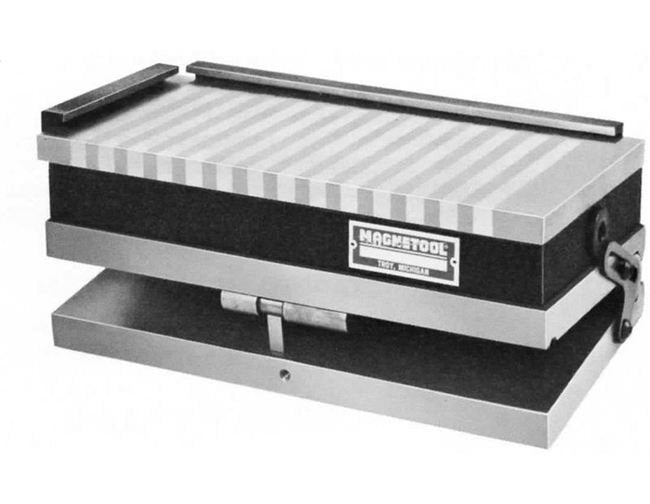

The Standard Pole Single Angle Magnetic Sine Plate by MAGNETOOL is a precision tool designed for quick and accurate angular setups. With high-power Ceramic magnets ensuring constant holding power, this plate features a steel and stainless steel furnace-brazed top plate for durability. With a surface area of 72 in² and a height of 4 1/4 in, this plate's SAE .8620 Steel Carburized material hardness of 58 to 60 Rockwell C provides unmatched accuracy. The standard pole spacing of 3/8 in, along with a tolerance of .0003 in, makes it ideal for a wide range of applications.
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.
Specifications Height
4 1/4 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
5.000
Specifications Standards
SAE
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
72 in²
Specifications Tolerance
.0003 in
Specifications Type
Single Angle
Specifications Weight
65 lb
