Standard Quarter Turn Cam - Style D, GH=18, 14 Dimension H
Standard Quarter Turn Cam - Style D, GH=18, 14 Dimension H
SKU:IND-50fc53
Secure industrial enclosures with the reliable Standard Quarter Turn Cam in Style D. Zinc Plated Mild Steel construction with 3mm ramp design. BH: -4, GH=18, 14H.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Standard Quarter Turn Cam - Style D, GH=18, 14 Dimension H
$24.99
Quantity: 1
Claim Your Seller Account
Standard Quarter Turn Cam - Style D, GH=18, 14 Dimension H
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

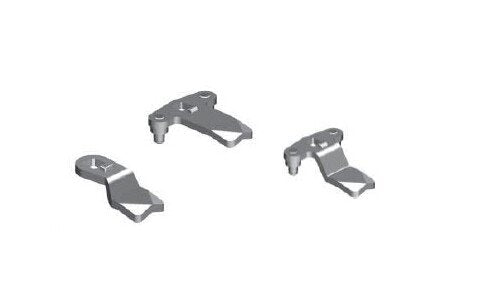

The Standard Quarter Turn Cam in Style D is a robust solution for securing industrial enclosures and cabinets. Crafted from Mild Steel with a Zinc Plated finish, this cam features a unique 3mm ramp design for smooth operation. Its stop mechanism ensures reliable quarter turn closure, especially in setups lacking internal restraints. With a fixed BH of -4, the cam's H dimension at GH=18 stands at 14, providing a secure and precise locking mechanism suitable for various applications. Stainless Steel variant available upon request for enhanced durability.

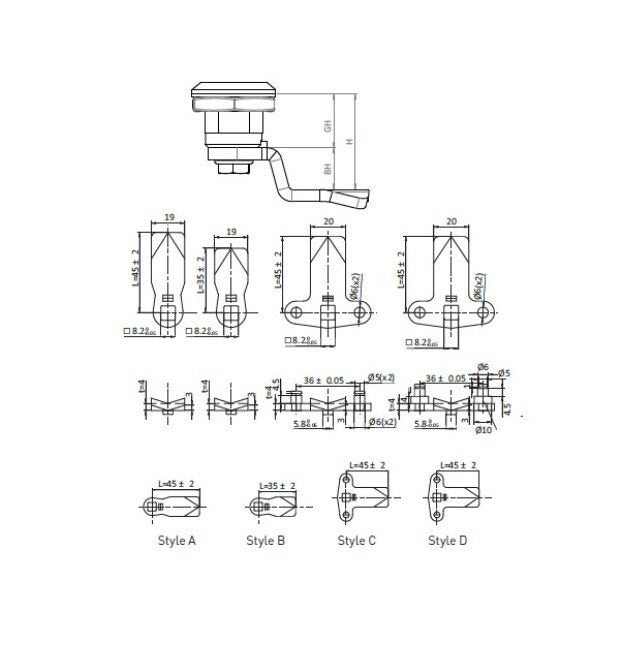

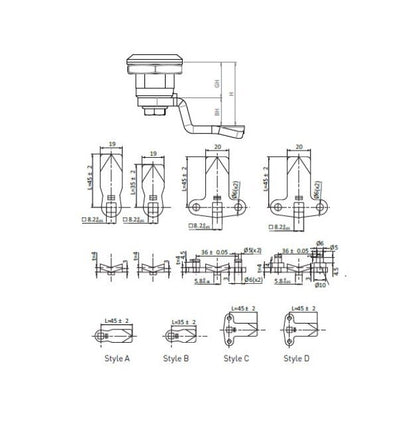

Product Specifications
Specifications Bh
-4
Specifications Dimension H At Gh18 Standard
14
Specifications Dimension H At Gh30
26
Specifications Dimension H At Gh36
32
Specifications Dimension H At Gh40
36
Specifications Dimension H At Gh50
46
Specifications Dimension H At Gh60
56
Specifications Material
Mild Steel
Specifications Note
Stainless Steel available on request.
Specifications Style
D
Specifications Surface Finish
Zinc Plated
