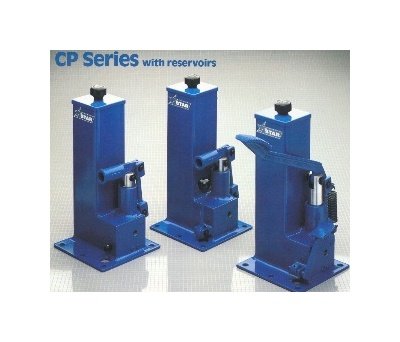

Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
SKU:HYD-7c7cb3
High-performance Foot Operated Hydraulic Pumps with 2-speed design, 20,000 PSI max pressure, and durable steel construction.
Regular price
$863.00
Regular price
Sale price
$863.00
Unit price
per
Initiate Order
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
$863.00
Quantity: 1
Claim Your Seller Account
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
$863.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs are precision-engineered for efficiency and reliability. These pumps feature a two-speed design that delivers pressure up to 20,000 PSI, offering rapid movement at low pressure for minimal work requirements. The pumps seamlessly switch to high pressure when maximum force is needed. With a steel body and hard chrome plated piston, these pumps are durable and robust. Each pump includes an adjustable overload relief valve, a manual pressure release valve, and a built-in oil reservoir for added convenience. Designed to meet the highest standards, these pumps ensure optimal performance in various applications.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Foot Lever Load Per 1000 Psi
23.0 lb
Specifications List Price
863 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Net Weight
33 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/4-1/2 in
Specifications Reservoir Volume
80 in³
Specifications Series
FCP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
1.84 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
