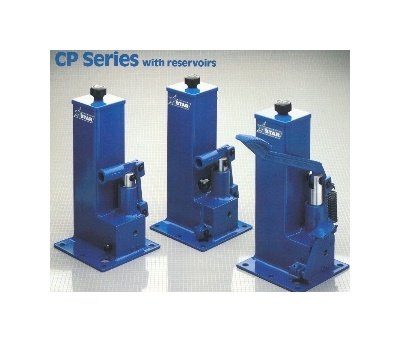

Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
SKU:HYD-fdeff8
Efficient Star FCP Series Foot Operated Hydraulic Pumps for precise pressure control and rapid movement. Ideal for low to high pressure tasks.
Regular price
$1,125.99
Regular price
Sale price
$1,125.99
Unit price
per
Initiate Order
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
$1,125.99
Quantity: 1
Claim Your Seller Account
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
$1,125.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs are designed for efficient hydraulic operations, featuring two-speed pumps that deliver pressure up to 20,000 PSI. These pumps provide rapid movement at low pressure for tasks requiring minimal force, automatically switching to high pressure for maximum push or pull force delivery. The foot-operated model includes a release pedal for user convenience. With a steel pump body and hard chrome plated piston, these pumps ensure durability and reliable performance. Adjustable overload relief valve and manual pressure release valve offer customized control. Available in three standard reservoir sizes and optional sizes, these pumps provide versatility for various applications.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Foot Lever Load Per 1000 Psi
23.0 lb
Specifications List Price
991 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Net Weight
44 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/2-1/2 in
Specifications Reservoir Volume
250 in³
Specifications Series
FCP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
2.65 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
