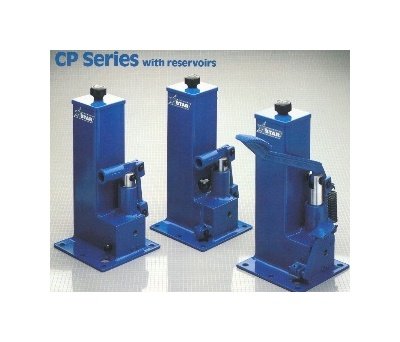

Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
SKU:HYD-d0ed1e
Efficient and versatile foot-operated hydraulic pumps with two-speed operation for precise hydraulic power control.
Regular price
$989.00
Regular price
Sale price
$989.00
Unit price
per
Initiate Order
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
$989.00
Quantity: 1
Claim Your Seller Account
Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs
$989.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Star FCP Series Foot Operated Hydraulic Pumps with Reservoirs are designed to provide efficient and precise hydraulic power for various applications. Featuring a two-speed operation, these pumps deliver rapid movement at low pressure when minimal work is needed, automatically switching to high pressure to deliver maximum force. The foot-operated design includes a release pedal for enhanced control. Built with steel pump bodies and hard chrome plated pistons, these pumps ensure durability and reliable performance. With adjustable overload relief valve settings and manual pressure release valves, these pumps offer customizable pressure options for different requirements. Available in three standard reservoir sizes with the option for customer-specified settings, the Star FCP Series pumps are versatile and suitable for a wide range of hydraulic tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Foot Lever Load Per 1000 Psi
23.0 lb
Specifications List Price
989 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Net Weight
44 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/4-1/2 in
Specifications Reservoir Volume
250 in³
Specifications Series
FCP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
1.84 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
