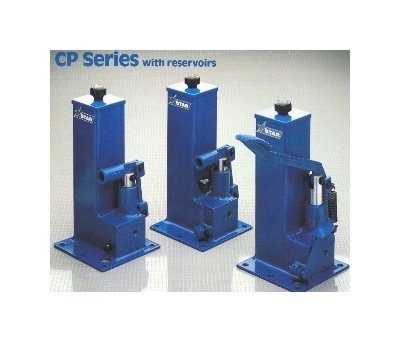

Star Foot Operated Hydraulic Pumps with Reservoirs - FCP Series
Star Foot Operated Hydraulic Pumps with Reservoirs - FCP Series
SKU:HYD-20b9c6
High-performance Foot Operated Hydraulic Pumps with Reservoirs - Ideal for industrial applications!
Regular price
$864.00
Regular price
Sale price
$864.00
Unit price
per
Initiate Order
Star Foot Operated Hydraulic Pumps with Reservoirs - FCP Series
$864.00
Quantity: 1
Claim Your Seller Account
Star Foot Operated Hydraulic Pumps with Reservoirs - FCP Series
$864.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Star Foot Operated Hydraulic Pumps from the FCP Series are expertly crafted to deliver exceptional performance in industrial settings. These pumps feature a high-quality steel construction with hard chrome-plated pistons, ensuring durability and efficiency. The two-speed design allows for rapid movement at low pressure and seamless switch to high pressure up to 20,000 PSI when maximum force is required. With adjustable overload relief valve and manual pressure release valve, these pumps offer precise control and safety precautions. The foot-operated model includes a release pedal for added convenience. Available in three standard reservoir sizes, these pumps cater to various operational needs, making them a reliable choice for institutional and government procurement requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Foot Lever Load Per 1000 Psi
23.0 lb
Specifications List Price
864 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Net Weight
33 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/2-1/2 in
Specifications Reservoir Volume
80 in³
Specifications Series
FCP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
2.65 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
