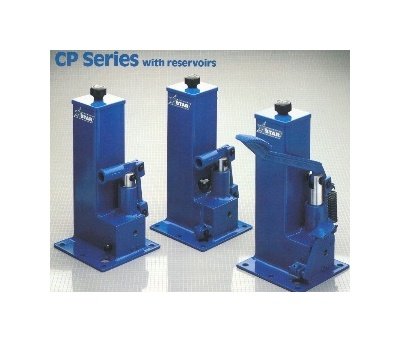

Star Hand Hydraulic Pumps - CP & CPS Series with Reservoirs
Star Hand Hydraulic Pumps - CP & CPS Series with Reservoirs
SKU:HYD-fe1295
Experience precision and power with Star Hand Hydraulic Pumps - CP & CPS Series. Ideal for industrial applications with adjustable overload relief valves and manual pressure release valves.
Regular price
$854.00
Regular price
Sale price
$854.00
Unit price
per
Initiate Order
Star Hand Hydraulic Pumps - CP & CPS Series with Reservoirs
$854.00
Quantity: 1
Claim Your Seller Account
Star Hand Hydraulic Pumps - CP & CPS Series with Reservoirs
$854.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Star Hand Hydraulic Pumps - CP & CPS Series with Reservoirs are expertly designed for industrial applications requiring precision and power. With adjustable overload relief valves and manual pressure release valves, these two-speed pumps effortlessly switch between low and high pressure, guaranteeing optimal performance at up to 20,000 PSI. The steel pump bodies and hard chrome-plated pistons ensure durability and smooth operation. These pumps come with standard 80 cu", 160 cu", and 250 cu" reservoirs, with custom sizes available upon request. Ideal for government and institutional procurement, these pumps comply with industry standards, providing reliable and efficient hydraulic power for various applications.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Lever Load Per 1000 Psi
12.0 lb
Specifications List Price
854 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
10000 psi
Specifications Net Weight
33 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
2-1/2 in
Specifications Release
Screw Release
Specifications Reservoir Volume
80 in³
Specifications Series
CP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
4.71 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
