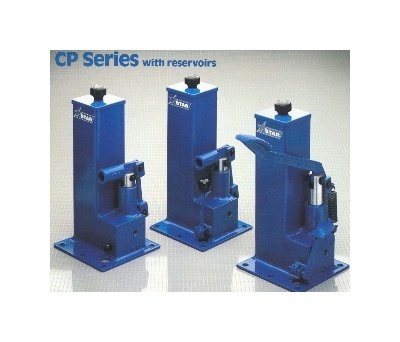

Star Hand Operated Hydraulic Pump with Reservoirs - CP & CPS Series
Star Hand Operated Hydraulic Pump with Reservoirs - CP & CPS Series
SKU:HYD-db2d60
Efficient two-speed hydraulic pump with adjustable pressure settings and durable construction for optimal performance in various applications.
Regular price
$903.00
Regular price
Sale price
$903.00
Unit price
per
Initiate Order
Star Hand Operated Hydraulic Pump with Reservoirs - CP & CPS Series
$903.00
Quantity: 1
Claim Your Seller Account
Star Hand Operated Hydraulic Pump with Reservoirs - CP & CPS Series
$903.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Star Hand Operated Hydraulic Pump with Reservoirs from the CP & CPS Series is a versatile solution for rapid movement and precise pressure control in hydraulic systems. Designed for maximum efficiency, this pump features a two-speed mechanism that automatically switches between low and high pressure settings, ensuring optimal performance at all times. With a durable steel body, hard chrome-plated piston, and adjustable overload relief valve, this pump offers reliability and durability. It comes with a manual pressure release valve for added convenience and is available with reservoir options to suit varying needs. Ideal for institutional and government buyers requiring high-quality hydraulic equipment.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Lever Load Per 1000 Psi
12.0 lb
Specifications List Price
903 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
10000 psi
Specifications Net Weight
36 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
2-1/2 in
Specifications Release
Cam Release
Specifications Reservoir Volume
160 in³
Specifications Series
CP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
4.71 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
