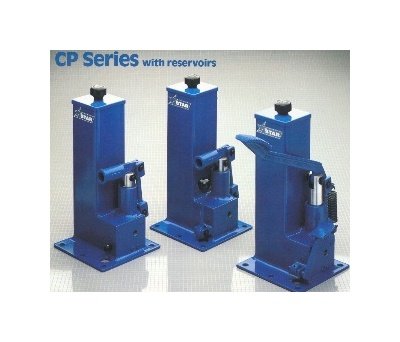

Star Hand Operated Hydraulic Pumps CP & CPS Series with Reservoirs
Star Hand Operated Hydraulic Pumps CP & CPS Series with Reservoirs
SKU:HYD-990a5f
Enhance hydraulic operations with Star Hand Operated Hydraulic Pumps - CP & CPS Series for up to 20,000 PSI pressure
Regular price
$997.00
Regular price
Sale price
$997.00
Unit price
per
Initiate Order
Star Hand Operated Hydraulic Pumps CP & CPS Series with Reservoirs
$997.00
Quantity: 1
Claim Your Seller Account
Star Hand Operated Hydraulic Pumps CP & CPS Series with Reservoirs
$997.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your hydraulic operations with Star Hand Operated Hydraulic Pumps CP & CPS Series, designed for efficiency and precision. These two-speed pumps deliver pressures up to 20,000 PSI, automatically switching between low and high pressure for optimal performance. Equipped with adjustable overload relief valves, manual pressure release valves, and steel pump bodies with hard chrome-plated pistons, these pumps ensure durability and reliability. With a choice of cam or screw release, along with various reservoir sizes available, these pumps offer versatility and customization to meet your specific needs.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Lever Load Per 1000 Psi
12.0 lb
Specifications List Price
997 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
10000 psi
Specifications Net Weight
44 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
2-1/2 in
Specifications Release
Cam Release
Specifications Reservoir Volume
250 in³
Specifications Series
CP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
4.71 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited Warranty All Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem. Technical Data Light hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid. All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
