Star Hand Operated Hydraulic Pumps P-A & P-AC Series with Reservoirs
Star Hand Operated Hydraulic Pumps P-A & P-AC Series with Reservoirs
SKU:HYD-74867b
Reliable Star Hand Operated Hydraulic Pumps for precise control and durability. Maximum pressure of 10,000 PSI. Backed by a 1-year warranty.
Regular price
$451.00
Regular price
Sale price
$451.00
Unit price
per
Initiate Order
Star Hand Operated Hydraulic Pumps P-A & P-AC Series with Reservoirs
$451.00
Quantity: 1
Claim Your Seller Account
Star Hand Operated Hydraulic Pumps P-A & P-AC Series with Reservoirs
$451.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

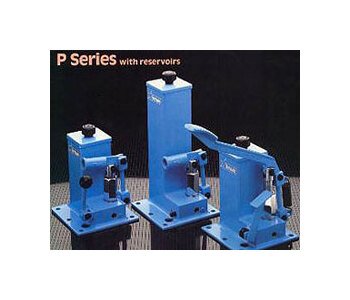

The Star Hand Operated Hydraulic Pumps P-A & P-AC Series with Reservoirs are designed to meet the rigorous demands of both consumer and institutional buyers. These pumps feature a built-in reservoir, adjustable overload relief valve, and manual pressure release valve for controlled operation. With a maximum pressure of 10,000 PSI, these pumps offer reliable performance. The steel pump bodies with hard chrome plated pistons ensure durability and longevity. Supplied with a 24" operating lever, these pumps deliver efficient operation and are backed by a one-year limited warranty for peace of mind.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Lever Load Per 100 Psi
4.9 lb
Specifications List Price
451 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
2500 psi
Specifications Net Weight Wo Oil
22-26 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 in
Specifications Release
Screw Release
Specifications Reservoir Volume
80 in³
Specifications Series
P
Specifications Volume Per Stroke
1.18 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
