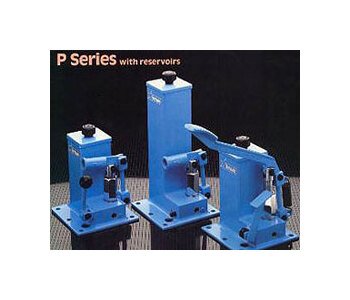

Star Hand Operated Hydraulic Pumps - P-A & P-AC Series with Reservoirs
Star Hand Operated Hydraulic Pumps - P-A & P-AC Series with Reservoirs
SKU:HYD-4bbd6e
Experience precise hydraulic power with Star Hand Operated Pumps - P-A & P-AC Series. Built for durability and control.
Regular price
$775.00
Regular price
Sale price
$775.00
Unit price
per
Initiate Order
Star Hand Operated Hydraulic Pumps - P-A & P-AC Series with Reservoirs
$775.00
Quantity: 1
Claim Your Seller Account
Star Hand Operated Hydraulic Pumps - P-A & P-AC Series with Reservoirs
$775.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Star Hand Operated Hydraulic Pumps - P-A & P-AC Series provide efficient hydraulic power with precision control. Featuring built-in reservoirs, adjustable overload relief valves, and manual pressure release valves, these pumps are designed for maximum pressure of 10,000 PSI. The steel pump bodies with hard chrome plated pistons ensure durability and reliable performance. With a standard reservoir capacity of 250 cubic inches, these pumps offer a maximum pressure rating of 10000 PSI. Ideal for a wide range of applications requiring controlled lowering speeds and high-pressure capabilities, the Star Hand Operated Hydraulic Pumps are a valuable addition to any hydraulic system.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Lever Load Per 100 Psi
7.8 lb
Specifications List Price
775 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
1500 psi
Specifications Net Weight Wo Oil
29-34 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/4 in
Specifications Release
Cam Release
Specifications Reservoir Volume
250 in³
Specifications Series
P
Specifications Volume Per Stroke
1.84 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
