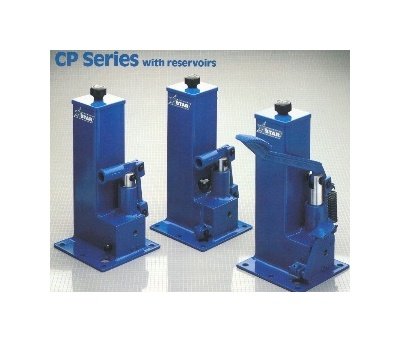

Star Hand Operated Hydraulic Pumps with Two-Speed CP & CPS Series
Star Hand Operated Hydraulic Pumps with Two-Speed CP & CPS Series
SKU:HYD-2b1326
Efficient & reliable hand operated hydraulic pumps with adjustable overload relief valves for seamless pressure transitions. Ideal for government procurement.
Regular price
$887.00
Regular price
Sale price
$887.00
Unit price
per
Initiate Order
Star Hand Operated Hydraulic Pumps with Two-Speed CP & CPS Series
$887.00
Quantity: 1
Claim Your Seller Account
Star Hand Operated Hydraulic Pumps with Two-Speed CP & CPS Series
$887.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Star Hand Operated Hydraulic Pumps with Two-Speed CP & CPS Series are specially designed for efficient hydraulic operations in various settings, offering seamless transition between low and high pressure for optimal performance. Equipped with adjustable overload relief valves and manual pressure release valves, these pumps ensure controlled and safe operation. With a maximum pressure rating of 20,000 psi and sturdy steel pump bodies, they deliver reliability and durability. These pumps come with steel pistons that are hard chrome-plated and offer different volume capacities to suit diverse needs. Included stainless steel options and various reservoir sizes with breather-filter further enhance their versatility, making them ideal for government and institutional procurement applications.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Lever Load Per 1000 Psi
4.8 lb
Specifications List Price
887 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
20,000 psi
Specifications Net Weight
36 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
9/16-18 Straight Thread (see drawing)
Specifications Piston
Low Pressure, Hard Chrome Plated Steel - High Pressure, Brass
Specifications Piston Diameter
1 1/2-5/16 in
Specifications Release
Cam Release
Specifications Reservoir Volume
160 in³
Specifications Series
CP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
2.65 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.11 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
