Starrett Magnetic Base with Post Assembly - Industrial Grade

Name: Starrett Magnetic Base with Post Assembly - Industrial Grade
Brand: Penn Tool Co.
SKU: BAS-68264b
Price: 89.99 USD
Availability: OutOfStock

SKU:BAS-68264b

Precision-engineered magnetic base for fast, accurate indicator positioning in industrial applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

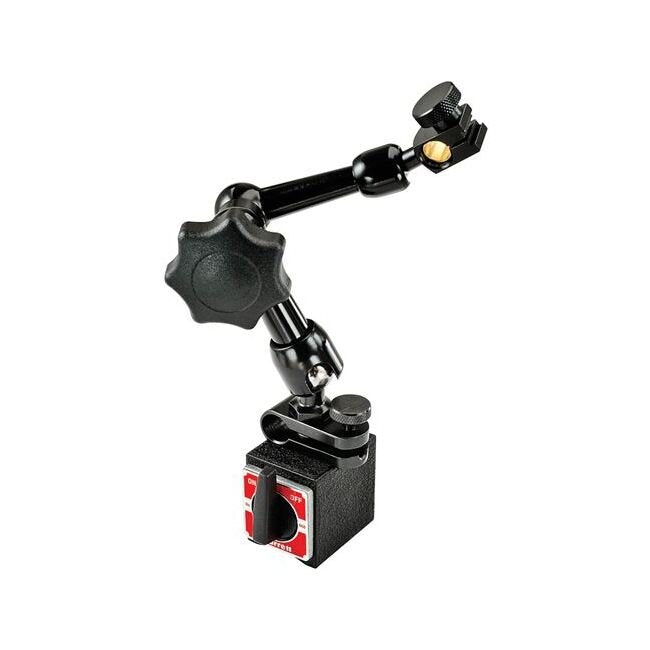

The Starrett Magnetic Base with Post Assembly is a precision-engineered tool designed for industrial applications. Featuring a compact design with three adjustable pivots and a central locking knob, this base allows for fast and easy positioning of indicators with utmost accuracy. With a maximum horizontal reach of 4.750 inches and a maximum vertical reach of 7.500 inches, this magnetic base offers versatile mounting options and a holding force of 70lbs (320N). The articulating arm provides full 360-degree horizontal positioning and over 180-degree vertical positioning, ensuring precise adjustments. Ideal for institutional and government procurement, this product meets stringent industry standards for durability and performance.

Product Specifications

Additional Information Additional Information

Small but powerful magnetic base with 70lb (320N) holding forcePositive On/Off switchHorizontal and vertical mounting positionsWill hold any indicator with a 3/8" (9.5mm) stem or standard dovetail mountArticulating arm with powerful central locking knob, provides full 360Âº horizontal positioning and over 180Âº vertical positioningVery sensitive fine-adjustment thumb screw

Technical Specs Brands

StarrettÂ®

Technical Specs Dimensions

1-3/16 x 1-9/16 x 1-3/8 in | 30 x 40 x 35 mm

Technical Specs Maximum Horizontal Reach

4.750 in | 120 mm

Technical Specs Maximum Vertical Reach

7.500 in | 190 mm

Technical Specs Model

EDP 68621

Starrett Magnetic Base with Post Assembly - Industrial Grade
