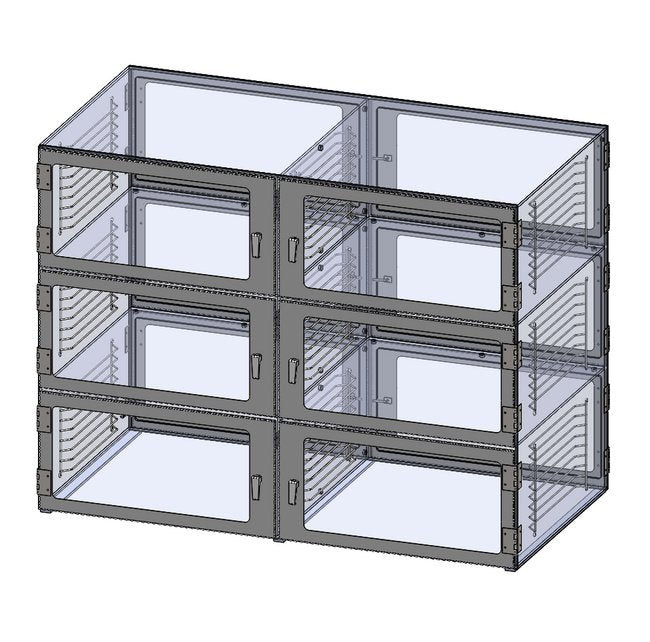

The 18-inch depth Static-Dissipative PVC Six Chamber Pass-Through Desiccator Cabinet offers a cutting-edge solution for ESD control in institutional and industrial settings. With six chambers and a surface resistivity of 10^6-10^8 ohms per square, this cabinet effectively eliminates static charges and maintains a clean, particle-free environment. Features front and rear access doors, stainless steel construction, wire racks for shelving, and a reliable grounding system. Optional accessories like Gas-in Port, Pressure Relief Valve, and Automatic Purge Control Unit enhance functionality and usability.
Product Specifications
Additional Information Additional Information
Eliminates static charges and keeps the dry box clean since it does not attract particles from the air. Surface resistivity of 106-108 ohms per square. Provides for ESD control without the need for ionization.A grounding system for electrostatic discharge.Front and rear access doors allow for pass-through operations.Stainless steel door frame and door hinge.Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.Metal lift-and-turn latch.Single-piece Santoprene seal.
Applications 0
Pass-Through Chambers
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Perforated stainless steel, acrylic or static-dissipative PVC shelves. (Wire racks are required for shelf placement.)Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.Chambers can either be interconnected using a perforated chamber divider or isolated to maintain a controlled environment.
Specifications Chamber Depth
18 in
Specifications Chamber Height
16 in
Specifications Chamber Width
24 in
Specifications Door Opening Height
14.1875 in
Specifications Door Opening Width
22.375 in
Specifications Internal Usable Space Depth
16.125 in
Specifications Internal Usable Space Height
15.75 in
Specifications Material
Static Dissipative Polyvinyl Chloride (PVC)
Specifications Number Of Chambers
6
Specifications Overall Depth
18 in
Specifications Overall Height
48 in
Specifications Overall Width
48 in
Specifications Usable Area Shelf Space Depth
15.5 in
Specifications Usable Area Shelf Space Width
21.5 in
