STE-35-4MB Electric Hydraulic Pump
STE-35-4MB Electric Hydraulic Pump
SKU:HYD-31205e
Powerful electric hydraulic pump delivering up to 10,000 psi pressure, ideal for single and double-acting cylinders. Lightweight, portable, and weatherproof design.
Regular price
$2,611.00
Regular price
Sale price
$2,611.00
Unit price
per
Initiate Order
STE-35-4MB Electric Hydraulic Pump
$2,611.00
Quantity: 1
Claim Your Seller Account
STE-35-4MB Electric Hydraulic Pump
$2,611.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

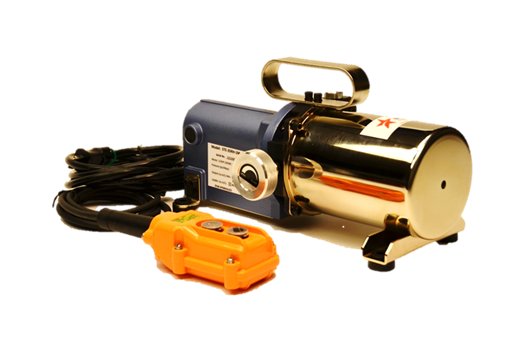

The STE-35-4MB Electric Hydraulic Pump is a versatile solution designed to deliver up to 10,000 psi of hydraulic pressure, activating single acting cylinders with precision. Equipped with a 4-way valve and a 49 cu-in. reservoir, this pump efficiently powers both single and double-acting cylinders. Featuring a 1/3 hp, 2,000 rpm motor, this pump ensures reliable performance and portability with its lightweight and compact design. Its all-weather sealed construction allows for outdoor use in any position, making it a durable and versatile choice for various applications.
Product Specifications
Specifications List Price
2611 USD
Specifications Max Flow 1st Stage
37 in³/min
Specifications Max Flow 2nd Stage
18 in³/min
Specifications Max Pressure 1st Stage
145 psi
Specifications Max Pressure 2nd Stage
10,000 psi
Specifications Motor Output
2,000 rpm
Specifications Motor Size
1/3 hp
Specifications Motor Voltage
110 V
Specifications Oil Capacity
0.26 gal
Specifications Outlet Port Size Nptf
3/8 in
Specifications Type
4-way valve
Specifications Usable Oil Capacity
0.21 gal
Specifications Weight
17 lb
