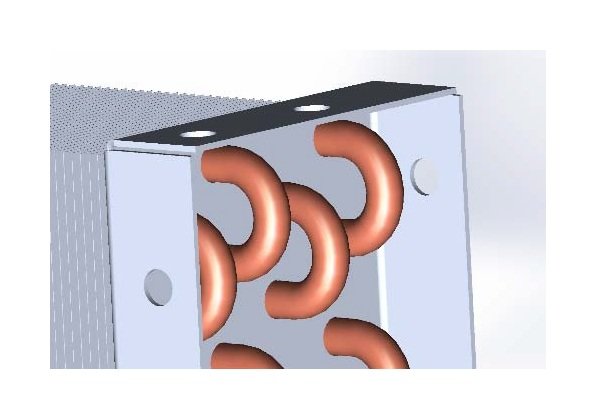

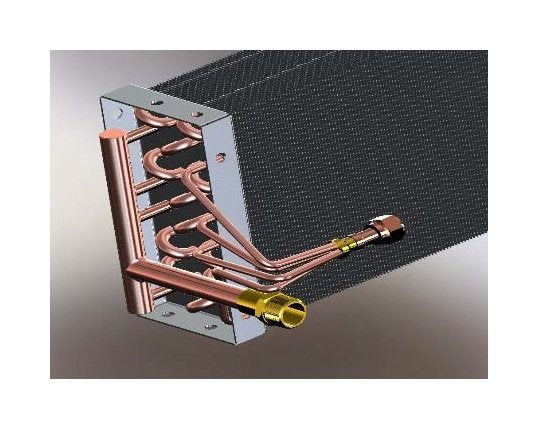

Upgrade your heating and cooling systems with Specialty Coils' Standard Steam and Steam Distributing coils. Engineered with premium materials including aluminum and copper fins, these coils are designed for optimal heat transfer efficiency. With multiple tube and fin variations, customizable wall thickness, and protective coil coating options, our steam coils ensure reliable performance. Tested in compliance with ARI 410 and UL standards, these coils guarantee top-notch quality and durability. Choose Specialty Coils for high performance, energy-efficient steam coils that meet the rigorous demands of institutional HVAC systems.
Product Specifications
Casing Specification Aluminum Hii Casing Thickness
0.050 gauge | 0.063 gauge | 0.080 gauge
Casing Specification Copper C12200 Casing Thickness
0.063 gauge
Casing Specification Galvanized G90 Casing Thickness
16 gauge | 18 gauge | 20 gauge
Casing Specification Stainless Steel 304 Casing Thickness
18 gauge
Connections
Multiple connection sizes and materials are available in Sweat, MPT, and FPT.
Fin Specification Aluminum Fin Options For 12 Inch In Tube Outer
0.0055 in | 0.0075 in | 0.0100 in
Fin Specification Aluminum Fin Options For 38 Inch In Tube Outer
0.0045 in | 0.0055 in | 0.0075 in | 0.0100 in
Fin Specification Aluminum Fin Options For 58 Inch In Tube Outer
0.0055 in | 0.0075 in | 0.0100 in
Fin Specification Copper Fin Options For 12 Inch In Tube Outer D
0.0050 in | 0.0100 in
Fin Specification Copper Fin Options For 38 Inch In Tube Outer D
0.0050 in
Fin Specification Copper Fin Options For 58 Inch In Tube Outer D
0.0050 in | 0.0100 in
Fin Specification Fins Per Inch Fpi For 12 Inch In Tube Outer Di
6 to 18 FPI
Fin Specification Fins Per Inch Fpi For 38 Inch In Tube Outer Di
8 to 20 FPI
Fin Specification Fins Per Inch Fpi For 58 Inch In Tube Outer Di
4 to 14 FPI
Fin Specification Note

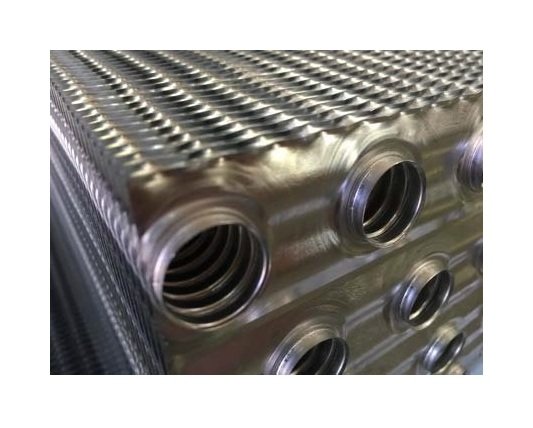

All fins are die formed aluminum or copper with collared tube holes
Performance
Calculations are based on tests run in accordance with ARI 410. | Underwriters Laboratories (UL) Certification.
Specifications Steam Coil Rows
1 to 12
Specifications Tube Outer Diameter
3/8 in | 1/2 in | 5/8 in
Tube Specification Copper Tube Wall Thickness For 12 Inch In Tub
0.016 in | 0.025 in
Tube Specification Copper Tube Wall Thickness For 38 Inch In Tub
0.028 in
Tube Specification Copper Tube Wall Thickness For 58 Inch In Tub
0.020 in | 0.035 in
Tube Specification Tube Patterns For 12 Inch In Tube Outer Diame
1.25 x 1.08 in
Tube Specification Tube Patterns For 38 Inch In Tube Outer Diame
1 x 0.866 in
Tube Specification Tube Patterns For 58 Inch In Tube Outer Diame
1.5 x 1.299 in
