Steel Angle Storm Valve A3060 150#
Steel Angle Storm Valve A3060 150#
SKU:VAL-07f640
Durable Steel Angle Storm Valve for industrial applications. ANSI standards compliant.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Steel Angle Storm Valve A3060 150#
$399.99
Quantity: 1
Claim Your Seller Account
Steel Angle Storm Valve A3060 150#
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

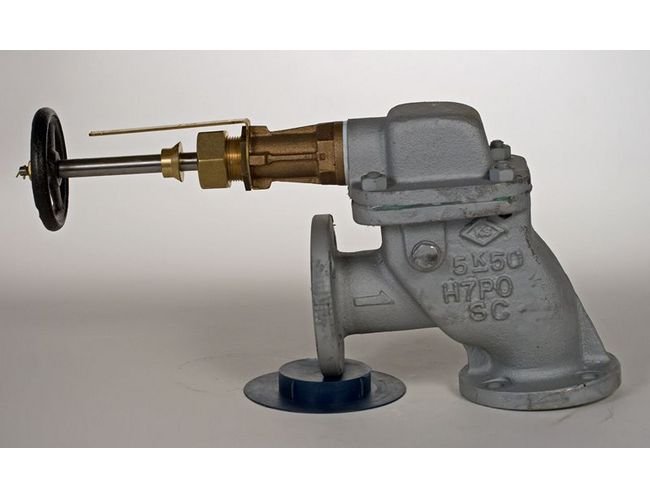

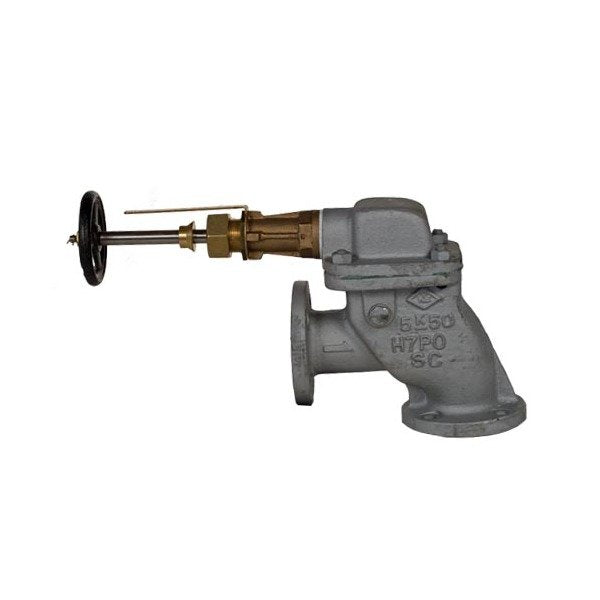

The Steel Angle Storm Valve A3060 150# is a robust solution designed for industrial applications, featuring a cast steel body, rubber seat, bronze disc, and stainless steel stem for durability and longevity. With a size of 200 and a test pressure of 5.1 kgf/cm², this valve ensures reliable performance under demanding conditions. It meets ANSI standards for quality and safety, making it an ideal choice for institutional and government procurement needs.

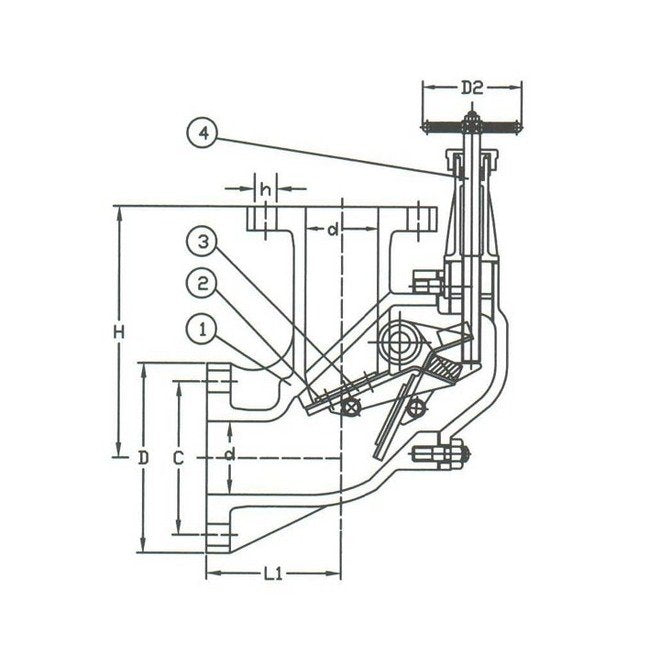

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
298.5 mm | 11.752 in
Specifications D
345 mm | 13.583 in
Specifications Disc Material
Bronze
Specifications H
400 mm | 15.748 in
Specifications H1
310 mm
Specifications Number Of Holes
8
Specifications Seat Material
Rubber
Specifications Size
200
Specifications Stem Material
Stainless Steel
Specifications T
28.6 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
127.6 kg
